Final Inspection and Adjustments (440R Loader)

1.

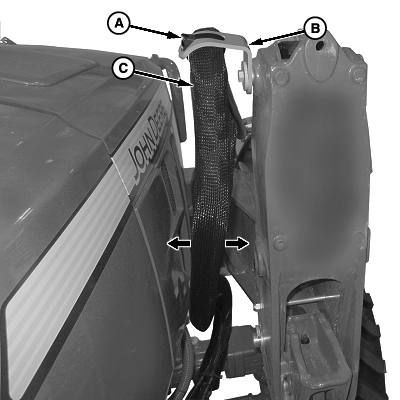

   W28238-UN-24JUL17

   A - Tie Band, Large

   B - Bracket

   C - Hose Bundle

   Hardware torque MUST be checked after the first 10 hours and every 50 hours thereafter.

   Check the mounting frame and loader hardware. (See First 10 Hours in Lubrication and Maintenance section.)

---




2. Make sure that the hose bundle (C) is fastened to the bracket (B) using a tie band (A) and routed to avoid contact with the loader frame.

3. Start the engine and check the loader operation. (See Attach Loader section.)

4. Cycle all cylinders three or four times.

5. Retract bucket cylinders completely and lower to the ground.

6. Shut off engine and remove ignition key.

7. Check the tractor transmission/hydraulic oil level. See the tractor Operator's Manual for more information.
