Identify Hose Connections (300R Loader) (3X20, 4X00, and 4X10 Series Tractors)

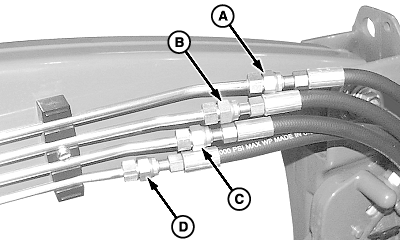

W06946
W06946-UN-17SEP04

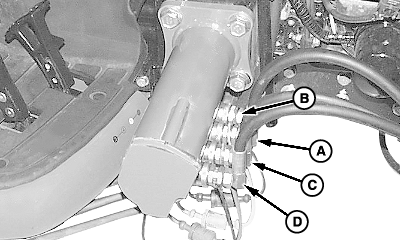

W07077
W07077-UN-12OCT04

Identify the hoses by installing color-coded caps on the end of the hoses.

Identify ports on the plate that hold couplers on the tractor with numbers and colors.

Key

Port

Plug/Cap Color

Hydraulic Function

A

1

Black

Bucket Cylinder—Rod End

B

2

Yellow

Bucket Cylinder—Head End

C

4

Blue

Lift Cylinder—Head End

D

3

Red

Lift Cylinder—Rod End

OUO6064,0001BFF-19-20180829
