Remove Front Weights (440R Loader)

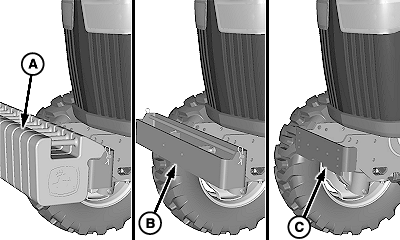

W23420-UN-08APR13

4049R Tractor Shown

A - Front Tractor Weight (as necessary)

B - Weight Bracket Extension

C - Weight Bracket

Front tractor weight bracket extension (B) is NOT compatible with the loader.

Remove all the front tractor weights (A) and weight bracket extension (B).

Front tractor weight bracket (C) MUST NOT be bent or damaged in any way. Replace if necessary.

A weight bracket (C) is required for installation of the loader and must remain on the tractor.
