Detach Loader (440R Loader)

  1. W14000
    W14000-UN-05OCT88

    Prevent possible injury caused by a falling or shifting loader. Always detach the loader on a hard, level surface. DO NOT detach the loader if equipped with a pallet fork. Use of a materials bucket is recommended.

    Remove the ballast box. (See procedure in this section.)



  2. Ensure that the loader is equipped with a materials bucket.

  3. Start the engine.

  4. Release the park brake and place the transmission in NEUTRAL.

  5. W28212
    W28212-UN-21JUL17

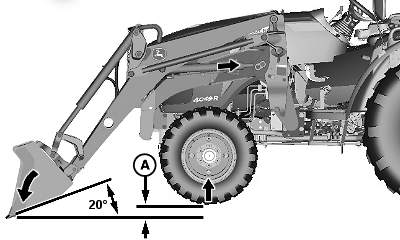

    A - Distance, 25—50 mm (1—2 in)

    Dump the bucket approximately 20° and lower the boom to the ground.



  6. Retract lift cylinders and raise the front wheels 25—50 mm (1—2 in) (A) off the ground.

  7. W28213
    W28213-UN-21JUL17

    Left-Hand Side Shown

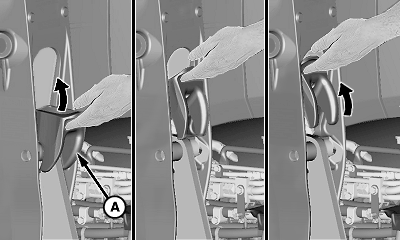

    A - Latch (1 each side)

    Push upward on the handle to disengage the latch (A). Repeat on the opposite side.



  8. W28214
    W28214-UN-21JUL17

    Left-Hand Side Shown

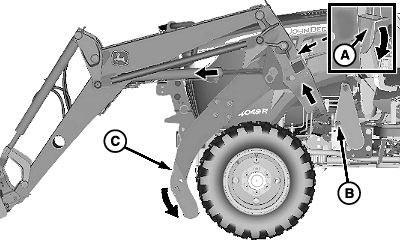

    A - Latch (1 each side)

    B - Mounting Frame Pin (1 each side)

    C - Parking Stand

    Extend lift cylinders until the parking stand (C) contacts the ground and the mast lifts off mounting frame pins (B).



  9. Retract bucket cylinders until latches (A) automatically return to the LOCKED (DOWN) position.

  10. Prevent possible injury from a latch closure. Make sure that latches are closed before leaving the loader unattended.

    Engage the park brake and place the transmission in PARK.

  11. Shut off engine and remove ignition key.

  12. X9811
    X9811-UN-23AUG88

    Escaping fluid under pressure can penetrate the skin, causing serious injury. Avoid the hazard by relieving pressure before disconnecting hydraulic or other lines. Protect hands and body from high-pressure fluids. (See additional information, Avoid High-Pressure Fluids, in Safety section.)

    Relieve the hydraulic pressure. (See Relieve Hydraulic Pressure in Controls section.)



  13. W23425
    W23425-UN-26FEB13

    W23426
    W23426-UN-05MAR13

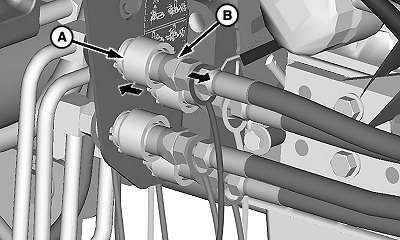

    A - Collar, Female Coupler (4 used)

    B - Coupler, Male (4 used)

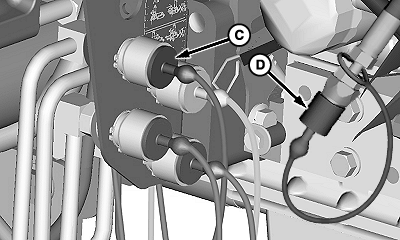

    C - Plug (4 used)

    D - Cap (4 used)

    If equipped with mid-mount couplers: Perform the following:

    1. Push back the collar (A) on the female coupler and pull out the male coupler (B).

    2. Install the dust plug (C) in the female coupler and cap (D) on the male coupler as shown.

    3. Repeat for the remaining couplers.



  14. W24434
    W24434-UN-16OCT13

    W24435
    W24435-UN-16OCT13

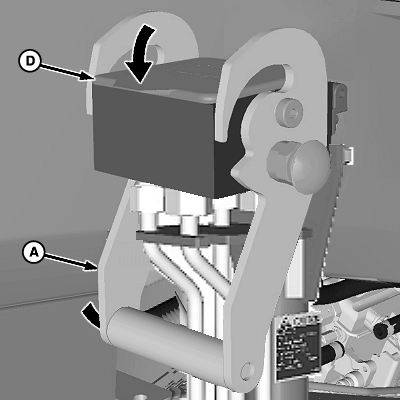

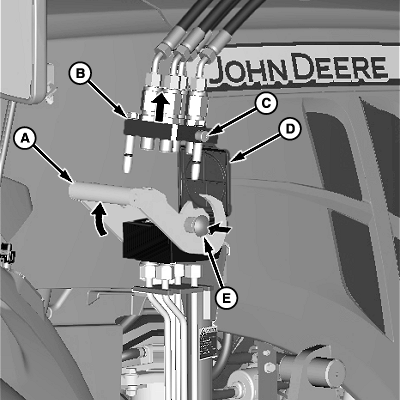

    A - Handle

    B - Loader Coupler Half

    C - Pin (1 each side)

    D - Cover

    E - Red Knob

    If equipped with a multicoupler: Perform the following:

    1. Push in the red knob (E) and rotate the handle (A) upward to disengage pins (C) and coupler halves.

    2. Remove the loader coupler half (B) from the tractor coupler and place on the mast. DO NOT lay the hoses on the ground.

    3. Avoid damage from contact with the tractor fender or wheel. Handle (A) must be in the locked (DOWN) position. To protect connections, lower the cover (D).

      Rotate the handle (A) downward until locked in the DOWN position.

    4. Lower the cover (D).



  15. W28215
    W28215-UN-21JUL17

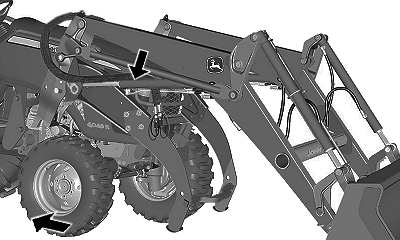

    Avoid damaging the hoses. Make sure that the hoses DO NOT interfere with the tractor when backing away from the loader.

    Slowly back the tractor away from the loader.
