Use Ballast Box

W28217-UN-21JUL17

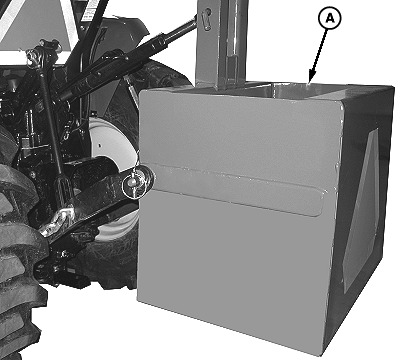

A - Ballast Box

Prevent possible injury or death from a tractor rollover. Add the required amount of ballast to the tractor. (See Prepare Tractor section.)

See Prepare Tractor section for proper ballasting of the tractor for loader operation.

Use the ballast box (A) in the rear-most position (approximately 610 mm [24 in] off the ground).
