Install Hitch Pin Bushings on Ballast Box for Category 2 Hitch

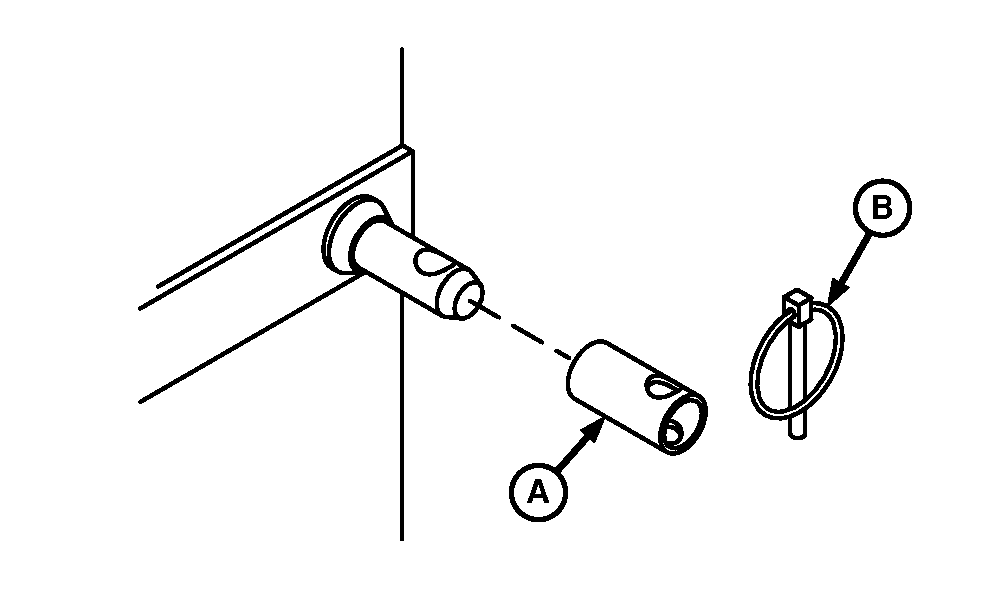

1. Install bushings on both hitch pins. Right-hand side shown.


   W05778-UN-09DEC02

   A - Bushing

   B - Quick-Lock Pin

   Install bushing (A) over the hitch pin with the cross hole as shown.

---




2. Install quick-lock pin (B).
