Tighten Hydraulic Fittings and Hoses

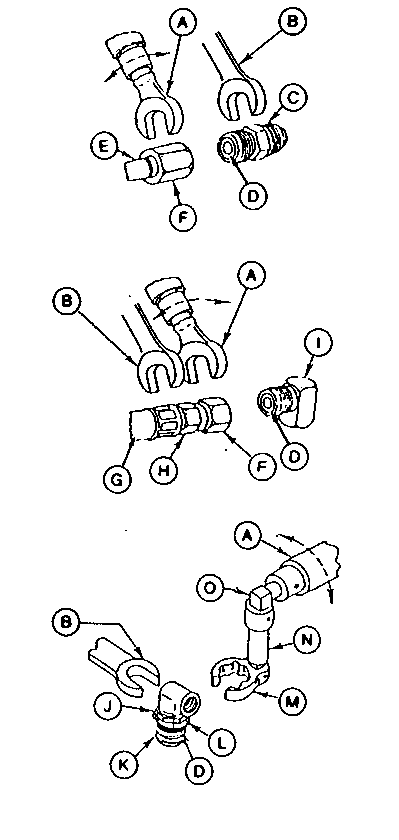

W28401-UN-26MAR18

A - Torque Wrench

B - Open-End Wrench

C - Union

D - O-Ring

E - Metal Line

F - Swivel Nut

G - Hose Connection

H - Back-Up Nut

I - Fitting

J - Jam Nut

K - Angle Fitting

L - Washer

M - Crowfoot

N - Extension

O - Drive

Kinking or twisting the hoses during installation shortens the hose life drastically. Be sure to follow proper procedure.

Tighten the fitting or nut to the torque value shown. Use one wrench to hold the body and one to tighten the nut.

For a hose, it can be necessary to use three wrenches to prevent twist, one on the body, one on the nut, and one on the hose fitting.

Flat Face O-Ring Seal
11/16-16 Fitting	Torque	24 N·m (212 lb·in)
O-Ring Boss Seal
3/4-16 Fitting	Torque	50 N·m (37 lb·ft)
