Identify Hose Connections—320R Loader (970, 1070, 990, and 4005 Tractors)
Left-hand side oil lines and couplers are shown. Right-hand side is identical.
W07035-UN-23SEP04
W06934-UN-19AUG04

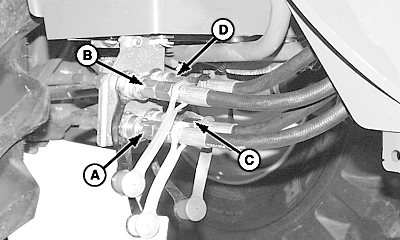

W09344-UN-29FEB08
4005 (Right-Hand Side)
Identify the hoses by installing color-coded caps on the end of the hoses.Identify the ports on the plate that hold couplers on the tractor by both numbers and colors.
|
Key |
Port |
Plug/Cap Color |
Hydraulic Function |
|---|---|---|---|
|
A |
1 |
Black |
Bucket Cylinder—Rod End |
|
B |
2 |
Yellow |
Bucket Cylinder—Head End |
|
C |
4 |
Blue |
Lift Cylinder—Head End |
|
D |
3 |
Red |
Lift Cylinder—Rod End |
|
OUO6064,00025C6-19-20180831 |
