Detach Loader When Equipped with Parking Kit (300E Loader)


Remove Ballast Box

  1. Prevent possible injury from tractor instability. Remove the ballast box from the hitch BEFORE detaching the loader. To prevent possible injury caused by an unexpected movement:

    1. Park machine on a hard, level surface.
    2. Engage the tractor park brake and place the transmission in PARK.
    3. Disengage the PTO.
    4. Shut off engine and remove ignition key.

    W05958
    W05958-UN-27MAR03

    A - Center Link

    B - Quick-Lock Pin (3 used)

    Ballast box with a 3-point hitch:

    1. Lower the ballast box to the ground.

    2. Remove quick-lock pins (B) from hitch pins and install in the storage position on the tractor draft links.

    3. Remove the tractor draft links from hitch pins.

    4. Remove the quick-lock pin (B) from the center link (A). Position the tractor center link in the transport location. Reinstall the center link and quick-lock pin.


  2. W05201
    W05201-UN-06MAR02

    A - Latch Control Lever (2 used)

    Ballast box with a quick-hitch:

    1. Lower the ballast box close to the ground.

    2. Raise both latch control levers (A) on the quick-hitch.

    3. Start the engine.

    4. Lower the ballast box to the ground. Continue lowering the quick-hitch until hooks clear hitch pins.


  3. Carefully drive the tractor away.


Detach Loader

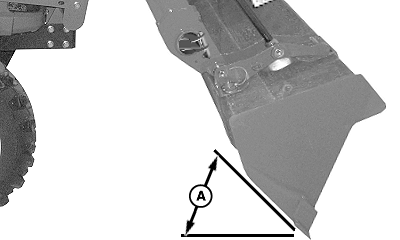

  1. W22661
    W22661-UN-12JUN12

    A - Angle, 45°

    Raise the boom slightly and dump the bucket to a 45° angle (A) as shown.


  2. Lower the bucket to the ground and apply slight down-pressure. Do not raise the front tires off the ground.

  3. Shut off the engine.

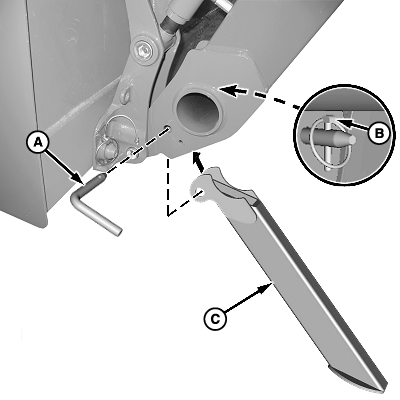

  4. W20471
    W20471-UN-21JUL09

    Left-Hand Side Shown

    A - Pin (1 each side)

    B - Quick-Lock Pin (1 each side)

    C - Parking Stand (1 each side)

    Install both parking stands (C), pins (A), and quick-lock pins (B) as shown.


  5. Ensure that the bucket and stands are firmly on the ground. Move the tractor and adjust the loader, if necessary.

    Lower the loader to the ground.

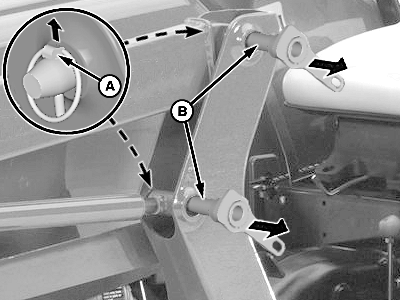

  6. W28147
    W28147-UN-10JUL17

    A - Quick-Lock Pin (2 per side)

    B - Pivot Pin (2 per side)

    Move the bucket until the pressure is removed from pivot pins (B). Do not raise parking stands off the ground.


  7. Shut off engine and remove ignition key.

  8. Remove quick-lock pins (A) and pivot pins (B).

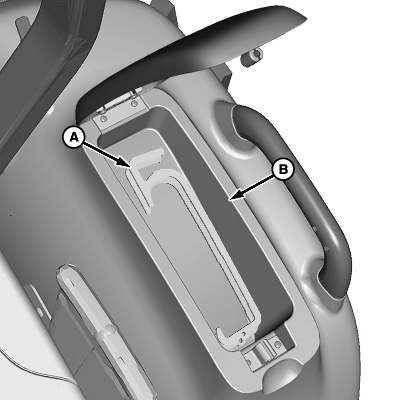

  9. W20485
    W20485-UN-29JUL09

    A - Cylinder Support (2 used)

    B - Storage Compartment

    Remove cylinder supports (A) from the tractor storage compartment (B).

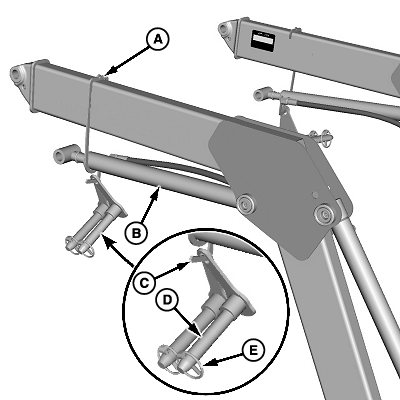

  10. W28148
    W28148-UN-10JUL17

    A - Cylinder Support (1 each side)

    B - Housing, Lift Cylinder (1 each side)

    C - Hook (1 each side)

    D - Pivot Pin (2 each side)

    E - Quick-Lock Pin (2 each side)

    Avoid damaging lift cylinder rods. DO NOT allow rods to rest in cylinder supports (A).

    Hang cylinder supports (A) on boom arms. Place lift cylinder housings (B) in supports as shown.


  11. Install quick-lock pins (E) on pivot pins (D) and store pivot pins on hooks (C).

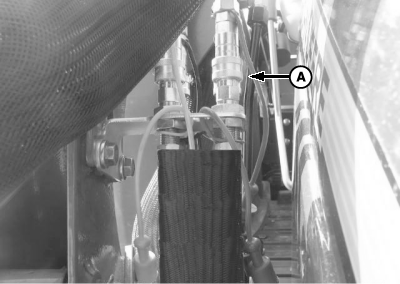

  12. W20386
    W20386-UN-09APR09

    A - Coupler (4 used)

    Escaping fluid under pressure can penetrate the skin, causing serious injury. Avoid the hazard by relieving pressure before disconnecting hydraulic or other lines. Protect hands and body from high-pressure fluids. (See additional information, Avoid High-Pressure Fluids, in Safety section.)

    Relieve the hydraulic pressure. (See Relieve Hydraulic Pressure in Controls section.)


  13. Disconnect hydraulic couplers (A).

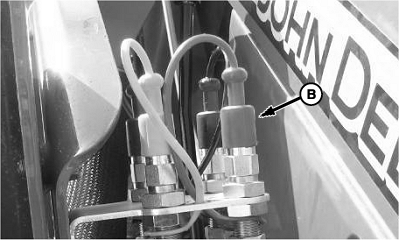

  14. W20387
    W20387-UN-09APR09

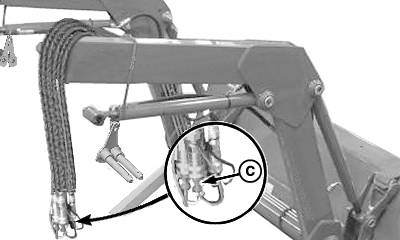

    W28149
    W28149-UN-10JUL17

    B - Cap (4 used)

    C - Plug (4 used)

    Install dust caps (B) and plugs (C) on coupler ends as shown.


  15. Store the hoses on the boom. Do not lay them on the ground.

OUO6064,0001B41-19-20180829
