Identify Hose Connections (300E Loader)

W09563
W09563-UN-19JUN08

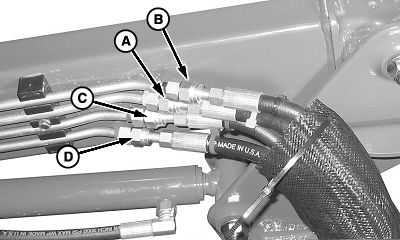

Loader Hoses

W20488
W20488-UN-31JUL09

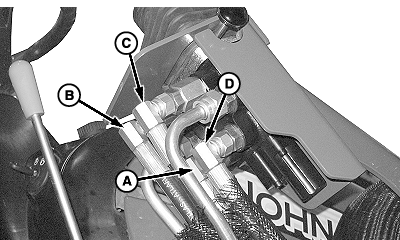

Single-Lever ICV Hoses

W20543
W20543-UN-09OCT09

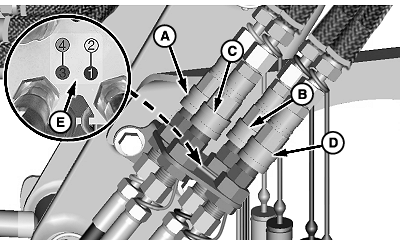

Couplers

A - Hose, Bucket Cylinder—Head End (Yellow)

B - Hose, Bucket Cylinder—Rod End (Black)

C - Hose, Lift Cylinder—Head End (Blue)

D - Hose, Lift Cylinder—Rod End (Red)

E - Label, Color Codes

Prevent possible injury caused by an unexpected loader movement. Anticipated loader movement responds to the control lever only if the hoses are connected as shown.

Hoses are shown with the sleeve pulled back for clarity purposes. To identify the correct hose, match color-coded tie bands near each fitting with color-coded caps on ends of each hose. To identify the correct coupler, use the color-code label (E) on the coupler mounting bracket. Color identifies the hydraulic function.
