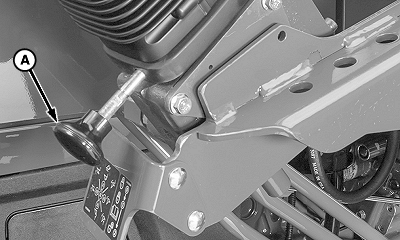

Lock Out Multi-Function Lever (400E Loader)

W23348
W23348-UN-14MAY13

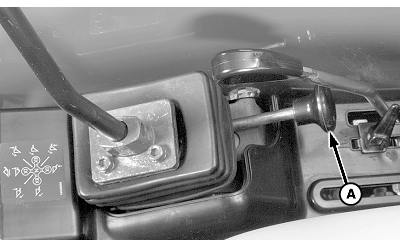

Lockout Knob (Mast-Mounted Lever)

W23755
W23755-UN-21MAY13

Lockout Knob (Tractor-Mounted Control Lever)

A - Lockout Knob

Lock the control lever in the middle position preventing unintentional movement of the loader.

  • Pull the lockout knob (A) OUT to engage the lock.
  • Push the lockout knob IN to unlock.

OUO6064,0001B8A-19-20180829
