Every Two Years (400E Loaders)

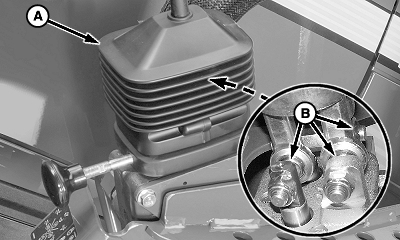

W23371
W23371-UN-17MAY13

A - Boot

B - Ball Joint (3 used)

Lubricate bearings on the single-lever ICV:

  1. Remove the boot (A) and slide up the shaft.

  2. Apply grease liberally to the outside surface of each ball joint (B). Move the lever in all directions to ensure that the lubricant penetrates ball joints.

  3. Install the boot.

OUO6064,0001B97-19-20180829
