Identify Hose Connections (400E Loader)

W23756
W23756-UN-21MAY13

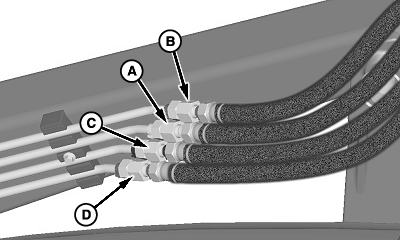

Loader Hose Connections (Two-Function Shown)

W23753
W23753-UN-28MAY13

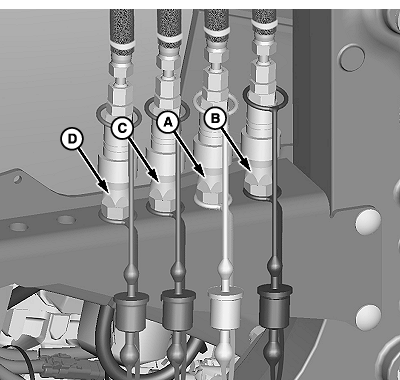

Couplers (Mast-Mounted)

W23758
W23758-UN-28MAY13

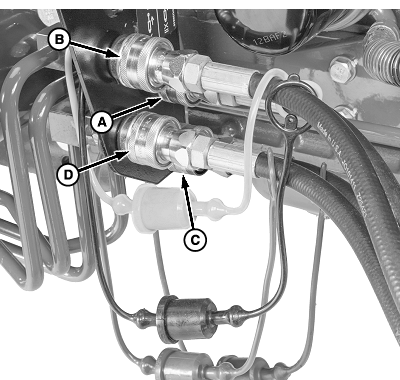

Couplers (Mid-Mount)

A - Hose, Bucket Cylinder—Head End (Yellow)

B - Hose, Bucket Cylinder—Rod End (Black)

C - Hose, Lift Cylinder—Head End (Blue)

D - Hose, Lift Cylinder—Rod End (Red)

Prevent possible injury caused by unexpected loader movement. Anticipated loader movement responds to the control lever only if the hoses are connected as shown.

To identify the correct hose, match color-coded tie bands near each fitting with color-coded caps on ends of each hose. Color identifies the hydraulic function.
