300E Loader Specifications on 3025D, 3025E, 3032E, 3035D, 3036E, 3038E, and 3043D Tractors

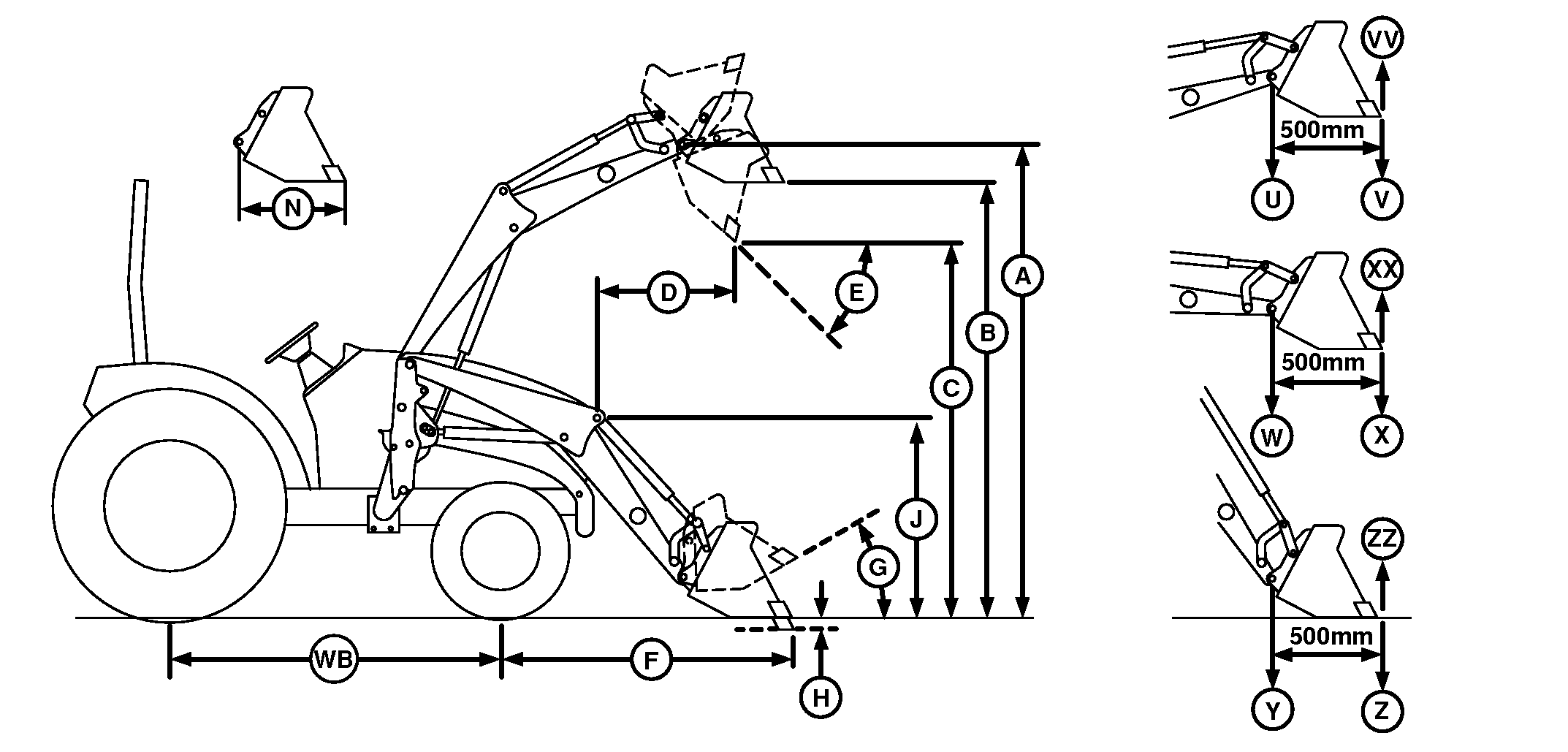

W23764-UN-14JUN13

3025D, 3025E, 3032E, 3035D, 3036E, 3038E, and 3043D Tractors1
Minimum Rear Ballast	Option 1	370 kg (816 lb) Rear Hitch Ballast
	Option 2	250 kg (551 lb) Rear Hitch Ballast Fluid Filled Rear Tires
	Option 3	170 kg (375 lb) Rear Hitch Ballast Fluid Filled Rear Tires Three Rear Wheel Weights Per Side—Total 140 kg (309 lb)
	Option 4	295 kg (650 lb) Rear Hitch Ballast Three Rear Wheel Weights Per Side—Total 140 kg (309 lb)
Front Tires	25 X 8.50-14
Rear Tires	15.00-19.5
Wheel Base (WB)	1525 mm (60 in)
General Purpose Materials Bucket
Width	1550 mm (61 in)
Length	—
Mass	93 kg (205 lb)
Hydraulic System
Rated Flow	20 L/min (5 gal/min)
Maximum Pressure	17 202 kPa (172 bar) (2495 psi)
Cycle Times (in seconds)
Loader Raise Time	3.31
Loader Lower Time	2.75
Bucket Dump Time	1.75
Bucket Rollback Time	1.88
Lift Height (Maximum)
To Pivot Pin (A)	2140 mm (84 in)
Clearance
Bucket Level (B)	1979 mm (78 in)
Bucket Dumped (C)	1596 mm (63 in)
Overall Length (WB + F)	2893 mm (114 in)
Digging Depth (H)	131 mm (5 in)

Reach
At Maximum Lift Height with Bucket Dumped (D)	603 mm (24 in)
Bucket on Ground with Bucket Leveled (F)	1369 mm (54 in)
Angles (Maximum)
Dump (E)	44°
Dump at Ground	122°
Rollback (G)	31°
Rollback at Full Height	—
Overall Height In Carrying Position (J)	161 mm (6 in)
Lift Capacity
To Maximum Height (U) at Pivot Point	539 kg (1186 lb)
To Maximum Height (V)	384 kg (845 lb)
To 1500 mm (59 in) at the Pivot pin (W)	588 kg (1294 lb)
To 1500 mm (59 in) (X)	444 kg (977 lb)
Breakout Force
At Pivot Point (Y)	7580 N (1704 lbf)
500 mm forward of the Pivot point (Z)	5356 N (1204 lbf)
Bucket Rollback Force
At Maximum Height (VV)	6374 N (1433 lbf)
At 1500 mm (59 in) Lift Height (XX)	8069 N (1814 lbf)
At Ground Level Line (ZZ)	6325 N (1422 lbf)
