Remove Front Weights (400E Loader)

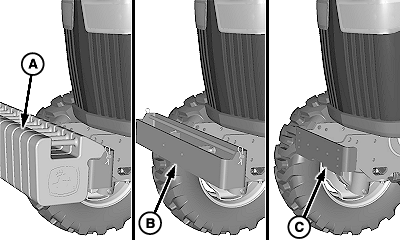

W23420-UN-08APR13

4049R Tractor Shown

A - Weight (as necessary)

B - Weight Bracket Extension

C - Weight Bracket

The front weight bracket extension (B) is NOT compatible with the loader.

Remove all the front tractor weights (A) and weight bracket extension (B).

Front weight bracket (C) MUST NOT be bent or damaged in any way. Replace if necessary.

Weight bracket (C) is required for installation of the loader and must remain on the tractor.
