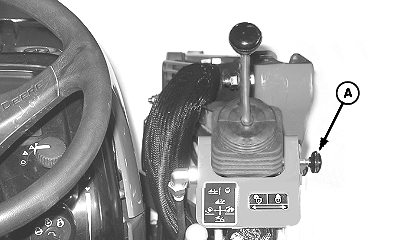

Lock Out Multi-Function Lever (300E Loader)
W09574-UN-26JUN08
A - Lockout Knob
Lock the control lever in the middle position preventing unintentional movement of the loader.- Pull the lockout knob (A) OUT to engage the lock.
- Push the lockout knob IN to unlock.
|
OUO6064,0001D75-19-20180829 |
