Attach Loader When Equipped with Parking Kit (400E Loader)

1.

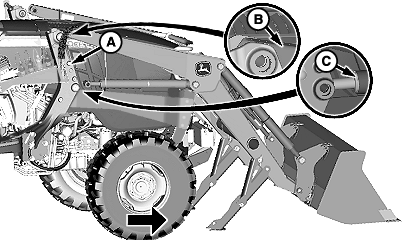

   W28150-UN-10JUL17

   Right-Hand Side Shown

   A - Mounting Frame (1 each side)

   B - Loader Boom (1 each side)

   C - Cylinder (1 each side)

   Attach the ballast box to the tractor. (See Attach Ballast Box to Tractor Hitch in Prepare Tractor section.)

---




2. Start the engine.

3. Center the tractor between the loader booms (B) so that cylinders (C) are positioned inside mounting frames (A).

4. Shut off engine and remove ignition key.

5.


   X9811-UN-23AUG88

   Escaping fluid under pressure can penetrate the skin, causing serious injury. Avoid the hazard by relieving pressure before disconnecting hydraulic or other lines. Protect hands and body from high-pressure fluids. (See additional information, Avoid High-Pressure Fluids, in Safety section.)

   Relieve the hydraulic pressure. (See Relieve Hydraulic Pressure in Controls section.)

---




6.

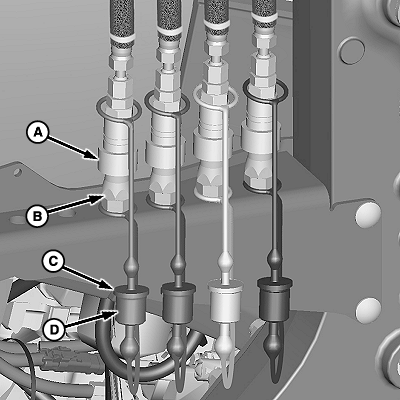

   W23752-UN-17MAY13

   Couplers (Mast-Mounted)

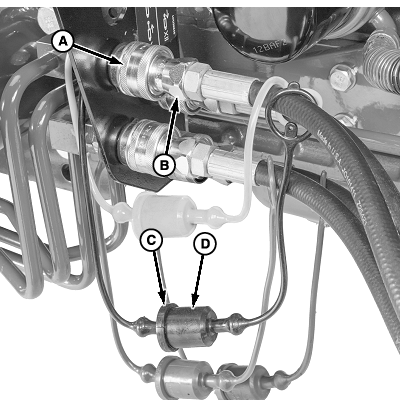

   W23759-UN-28MAY13

   Couplers (Mid-Mount)

   A - Coupler, Female (4 used)

   B - Coupler, Male (4 used)

   C - Plug, Color-Coded (4 used)

   D - Cap, Color-Coded (4 used)

   Prevent possible injury caused by an unexpected loader movement. Hose connections must be correct for the loader to respond as expected when the control lever is moved.

   Before connecting the hoses, ensure that couplers are free of dirt and debris.

   Identify hose connections using color-coded caps and plugs on couplers and hoses.

   Connect couplers (A and B).

---




7. Connect all plugs and caps (C and D) as shown.

8. Start the engine.

9.


   W20683-UN-17FEB10


   W23365-UN-19JUL13

   Left-Hand Side Shown

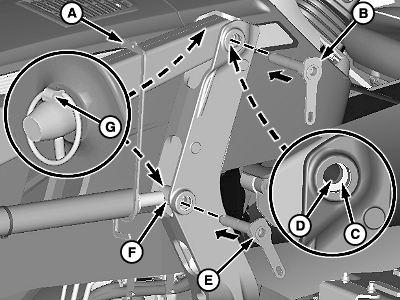

   A - Cylinder Support (1 each side)

   B - Pivot Pin, Long (1 each side)

   C - Bushing, Mounting Frame (1 each side)

   D - Bushing, Boom (1 each side)

   E - Pivot Pin, Short (1 each side)

   F - Bushing, Lift Cylinder (1 each side)

   G - Quick-Lock Pin (2 each side)

   Prevent possible injury. DO NOT insert fingers into holes while aligning components.

   To align bushings (C and D), pivot the bucket.

---




10. Engage the tractor park brake and place the transmission in PARK.

11. Shut off engine and remove ignition key.

12. To align bushings and install pivot pins, insert a tapered pin or drift through the back of the mounting frame.

    Install the long pivot pin (B) in the top hole and through the boom bushing (D). Fasten using the quick-lock pin (G).

13. Move the control lever into the FLOAT position.

14. Remove the cylinder support (A) and place it in the tractor storage compartment.

15. Align the lift cylinder bushing (F) with the mounting frame bushing (C).

16. Install the short pivot pin (E) and fasten with the quick-lock pin (G).

17. Repeat on the opposite side.

18.
    W23366-UN-29JAN13

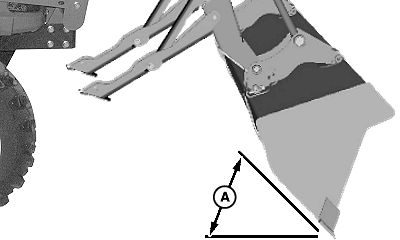

    Bucket Position

    A - Angle, 45°

    Start the tractor, raise the boom slightly, and dump the bucket to a 45° angle (A) as shown.

---




19. Lower the bucket to the ground and apply slight down-pressure. Do not raise the front tires off the ground.

20. Shut off engine and remove ignition key.

21.
    W28151-UN-10JUL17


    W28152-UN-10JUL17

    Right-Hand Side Shown

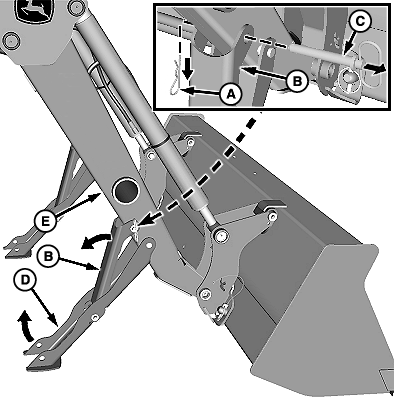

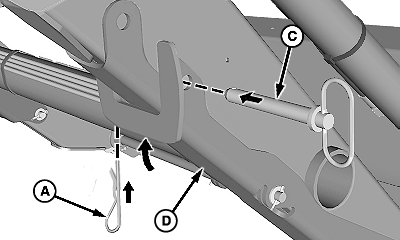

    A - Quick-Lock Pin (1 each side)

    B - Parking Stand Support (1 each side)

    C - Pin (1 each side)

    D - Parking Stand (1 each side)

    E - Boom (1 each side)

    Remove quick-lock pins (A) and pins (C) from parking stands (D).

---




22. Rotate parking stand supports (B) outward and raise parking stands (D) to the underside of booms (E). Fasten using pins (C) and quick-lock pins (A).

23. Check for proper loader operation in response to the control lever. (See Operate Loader with Multi-Function Lever in Controls section.)
