Detach Loader When Equipped with Parking Kit (400E Loader)


Remove Ballast Box

  1. Prevent possible injury from tractor instability. Remove the ballast box from the hitch BEFORE detaching the loader. To prevent possible injury caused by unexpected movement:

    1. Park machine on a hard, level surface.
    2. Engage the tractor park brake and place the transmission in PARK.
    3. Disengage the PTO.
    4. Shut off engine and remove ignition key.

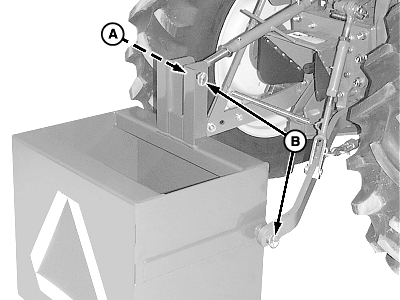

    W05958
    W05958-UN-27MAR03

    A - Center Link

    B - Quick-Lock Pin (3 used)

    Ballast box with a 3-point hitch:

    1. Lower the ballast box to the ground.

    2. Remove quick-lock pins (B) from hitch pins and install in the storage position on the tractor draft links.

    3. Remove the tractor draft links from hitch pins.

    4. Remove the quick-lock pin (B) from the center link (A). Position the tractor center link in the transport location. Reinstall the center link and quick-lock pin.

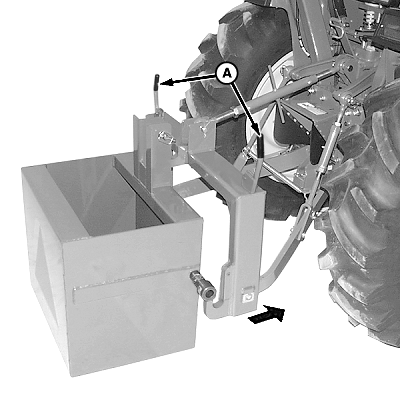

  2. W05201
    W05201-UN-06MAR02

    A - Latch Control Lever (2 used)

    Ballast box with a quick-hitch:

    1. Lower the ballast box close to the ground.

    2. Raise both latch control levers (A) on the quick-hitch.

    3. Start the engine.

    4. Lower the ballast box to the ground. Continue lowering the quick-hitch until hooks clear hitch pins.


  3. Carefully drive the tractor away.


Detach Loader

  1. Prevent possible injury from loader instability. Only park the loader with a parking kit installed. Fixed loaders are permanently attached to the tractor and cannot be detached. See a John Deere dealer for a parking stand kit attachment to convert a fixed loader to a parking loader.

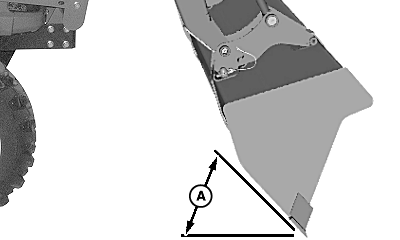

    W23354
    W23354-UN-28JAN13

    A - Angle, 45°

    Raise the boom slightly and dump the bucket to a 45° angle (A) as shown.


  2. Lower the bucket to the ground and apply slight down-pressure. Do not raise the front tires off the ground.

  3. Shut off engine and remove ignition key.

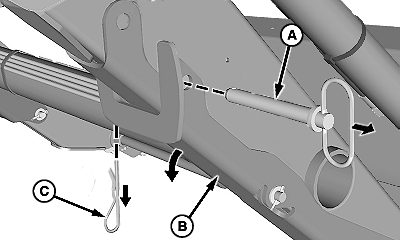

  4. W28153
    W28153-UN-10JUL17

    Right-Hand Side Shown

    A - Pin (1 each side)

    B - Parking Stand (1 each side)

    C - Quick-Lock Pin (1 each side)

    Lower parking stands on both sides:

    1. Remove the quick-lock pin (C) and pin (A) supporting the parking stand (B).

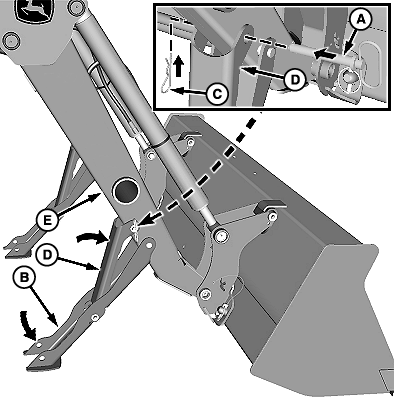

    2. W28154
      W28154-UN-10JUL17

      A - Pin (1 each side)

      B - Parking Stand (1 each side)

      C - Quick-Lock Pin (1 each side)

      D - Support Bracket

      E - Boom

      Lower the parking stand (B) and raise the support bracket (D) toward the boom (E) as shown.

    3. Install the pin (A) through the support bracket and boom. Fasten using the quick-lock pin (C) as shown.

    4. Repeat on the opposite side.


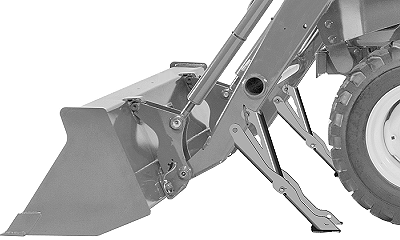

  5. W28155
    W28155-UN-10JUL17

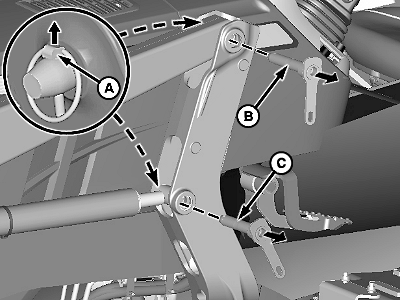

    W23360
    W23360-UN-19JUL13

    Left-Hand Side Shown

    A - Quick-Lock Pin (2 per side)

    B - Pivot Pin, Long (1 per side)

    C - Pivot Pin, Short (1 per side)

    If necessary, move the tractor and adjust the loader to ensure that the bucket and stands are firmly on the ground.

    Lower the loader until the bucket and parking stands are flat on the ground.


  6. Move the bucket until the pressure is removed from pivot pins (B and C). Do not raise parking stands off the ground.

  7. Shut off engine and remove ignition key.

  8. Remove quick-lock pins (A) and pivot pins (B and C).

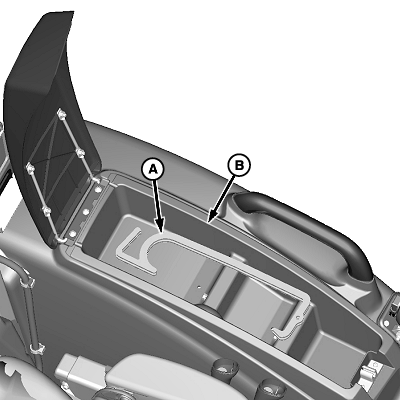

  9. W23357
    W23357-UN-22JAN13

    A - Cylinder Support (2 used)

    B - Storage Compartment

    Remove cylinder supports (A) from the tractor storage compartment (B).

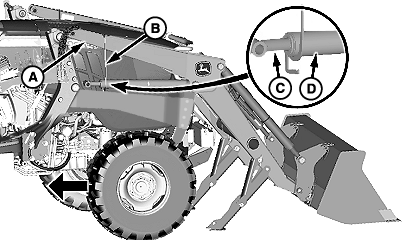

  10. W28156
    W28156-UN-10JUL17

    A - Boom (1 each side)

    B - Cylinder Support (1 per side)

    C - Rod, Lift Cylinder (1 each side)

    D - Housing, Lift Cylinder (1 each side)

    Avoid damaging lift cylinder rods (C). DO NOT allow rods to rest in cylinder supports (B).

    Hang cylinder supports (B) on booms (A) and place lift cylinder housings (D) in supports as shown.

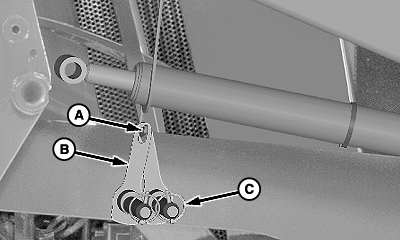

  11. W23361
    W23361-UN-19JUL13

    Right-Hand Side Shown

    A - Hook (1 each side)

    B - Pivot Pin (1 long, 1 short each side)

    C - Quick-Lock Pin (2 each side)

    Install quick-lock pins (C) on pivot pins (B) and store pivot pins on hooks (A) as shown.


  12. Start the engine.

  13. Slowly back the tractor away from the loader.

  14. Shut off engine and remove ignition key.

  15. X9811
    X9811-UN-23AUG88

    Escaping fluid under pressure can penetrate the skin, causing serious injury. Avoid the hazard by relieving pressure before disconnecting hydraulic or other lines. Protect hands and body from high-pressure fluids. (See additional information, Avoid High-Pressure Fluids, in Safety section.)

    Relieve the hydraulic pressure. (See Relieve Hydraulic Pressure in Controls section.)

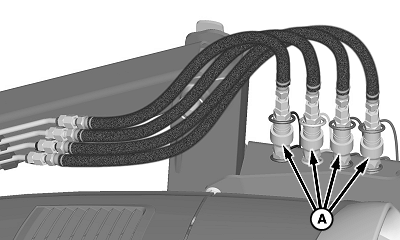

  16. W23619
    W23619-UN-15MAY13

    Couplers (Mast-Mounted)

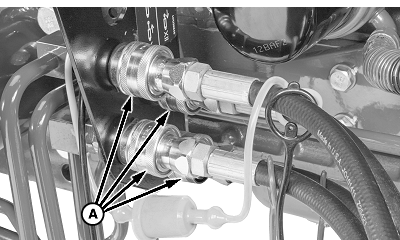

    W23760
    W23760-UN-28MAY13

    Couplers (Mid-Mount)

    A - Coupler (4 used)

    Disconnect hydraulic couplers (A).

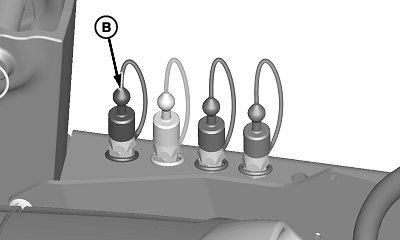

  17. W23620
    W23620-UN-16MAY13

    Caps (Mast-Mounted Couplers)

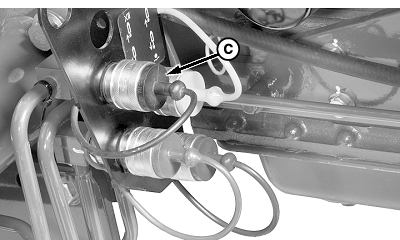

    W23761
    W23761-UN-28MAY13

    Plugs (Mid-Mount Couplers)

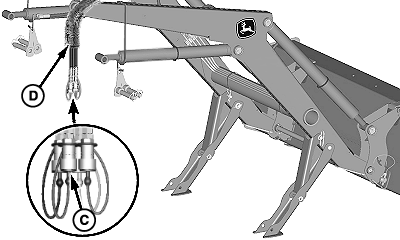

    W28157
    W28157-UN-10JUL17

    Plugs (Loader Hose Couplers)

    B - Cap (4 used)

    C - Plug (4 used)

    D - Hose (4 used)

    Install dust caps (B) and plugs (C) on coupler ends as shown.


  18. Store the loader hoses (D) on the boom as shown.

OUO6064,0001D78-19-20180829
