Attach Bucket or Attachment

1.
   W28158-UN-10JUL17


   W23353-UN-18JAN13

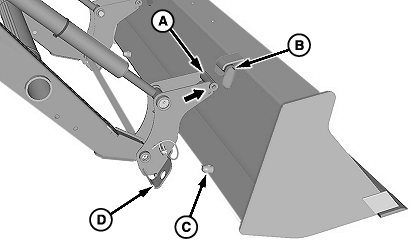

   A - Holder (1 each side)

   B - Hook (1 each side)

   C - Bucket Pin (1 each side)

   D - Holder Strap (1 each side)

   E - Quick-Lock Pin (1 each side)

   F - Storage Position (1 each side)

   Start the engine.

---




2. Extend bucket cylinders and angle the carrier forward.

3. Align holders (A) with hooks (B).

4. Raise the loader until the carrier engages hooks, then roll back the bucket.

5. Raise the loader high enough to check that holder straps (D) engage bucket pins (C) on both sides.

6. Shut off engine and remove ignition key.

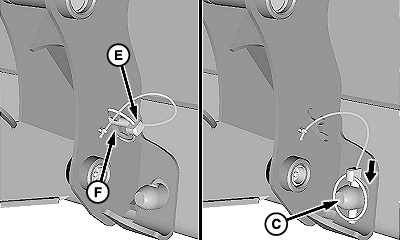

7. Remove quick-lock pins (E) from the storage position (F).

8. Install quick-lock pins (E) through bucket pins (C).

9. Prevent possible injury. Make sure that the bucket is properly secured to the carrier.

   Start the engine. Verify that the carrier is fully engaged. Extend bucket cylinders and apply down-pressure on the bucket against the ground.

10. Lower the loader to the ground and shut off the engine.
