Detach Bucket or Attachment

1.
   W23350-UN-18JAN13

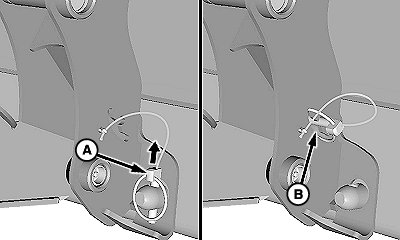

   A - Quick-Lock Pin (1 each side)

   B - Storage Position (1 each side)

   Start the engine.

---




2. Release the park brake and place the transmission in NEUTRAL.

3. Roll back the bucket slightly and raise the boom approximately 460 mm (18 in) above the ground.

4. Remove the quick-lock pin (A) from each side.

5. Store quick-lock pins in the storage position (B).

6.
   W28159-UN-10JUL17

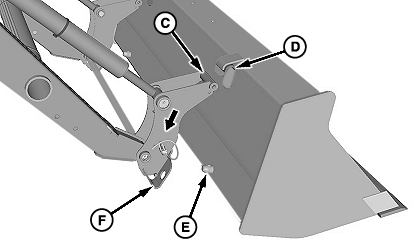

   C - Holder (1 each side)

   D - Hook (1 each side)

   E - Bucket Pin (1 each side)

   F - Holder Strap (1 each side)

   Extend bucket cylinders until the bucket pin (E) releases from the holder strap (F) on each side.

---




7. Lower the loader boom, place the transmission in REVERSE, and move away from the bucket. Holder (C) releases from the hook (D) on each side of the bucket.

8. Set the park brake and place the transmission in PARK. Shut off engine and remove ignition key.
