Use Bucket Level Indicator

W28161
W28161-UN-10JUL17

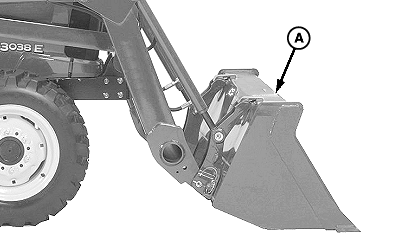

A - Label

Cleaning concrete surfaces causes rapid bucket wear. The bucket level indicator label helps to ensure that the bucket rides on wear pads.

Bucket is level when the indicator label (A), viewed by the operator in the operator’s seat, is level to the ground.

OUO6064,0001D7F-19-20180829
