Operate Hay Grapple—If Equipped (400E Loader)

1.

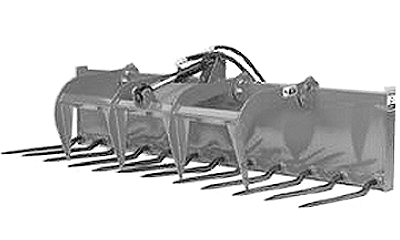

   W23846-UN-04SEP13

   Prevent possible injury or death. The hay grapple is NOT approved for transporting hay bales. Use a bale fork or bale grapple attachment to handle hay bales.

   Approach the hay with spears level and the grapple open.

---




2. Push spears into the hay until against the frame.

3. Close the grapple onto the material.

4. To provide ground clearance for transport, raise and roll back the grapple.
