Service Loader and Tractor Safely (Loader Attached)

W01151
W01151-UN-12AUG93

E50093
E50093-UN-08AUG01

Prevent possible injury from an accidental lowering of the loader. DO NOT perform service around the front of the tractor with the loader elevated and unsupported. Before lubricating or servicing the loader or tractor, perform the following:
  1. Engage the park brake and place the transmission in PARK.
  2. Lower the loader to the ground.
  3. Shut off engine and remove ignition key.
  4. Relieve the hydraulic pressure. (See Relieve Hydraulic Pressure in Controls section.)

W12612
W12612-UN-05OCT88

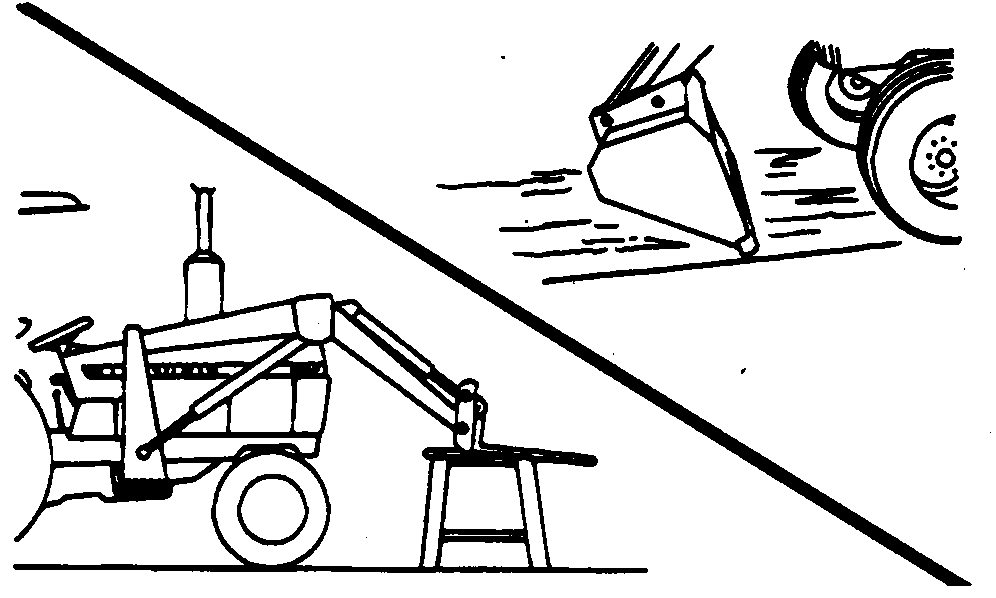

Normally, access to the engine compartment and front of the tractor can be made with the bucket flat on the ground. However, due to tractor size and tire variations, it can be necessary to do one of the following:

  • If equipped with a bucket: Dump the bucket fully and lower the loader to the ground.
  • If equipped with an attachment: Raise the loader and place safety stands under the frame of the attachment. Lower the attachment onto safety stands and relieve the hydraulic pressure.
  • If not equipped with an attachment: Raise the loader and place safety stands under the loader boom arms. Lower the loader onto safety stands and relieve the hydraulic pressure.

OUO6064,0001516-19-20180829
