Every 50 Hours—220R Loader
Check and Tighten Hardware

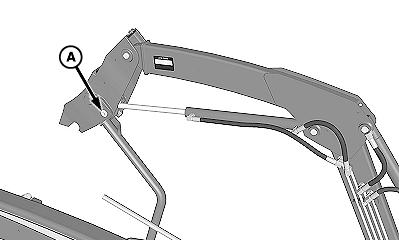

W27071-UN-11SEP15
Parking Stand

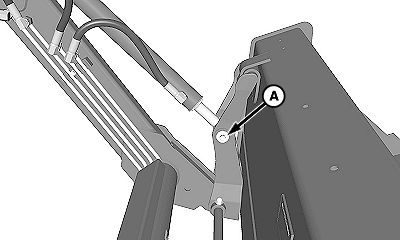

W27152-UN-03DEC15
Bucket or Attachment Carrier
A - Cap Screw, M8 (4 used)
Tighten cap screws (A) (inside frame), on pivot pins on both sides, to specification.
| Cap Screw | Torque | 32 N·m (23.5 lb·ft) |
Tighten Mounting Frame Hardware

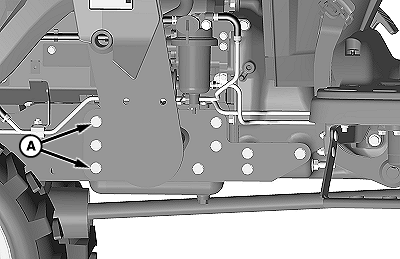

W27073-UN-11SEP15
2032M Tractor (Left-Hand Side) Shown
A - Mounting Frame Hardware
Tighten the mounting frame hardware (A) on both sides to specifications.
|
Tractor |
Hardware |
Torque Specification |
|---|---|---|
|
2032M 2032R, 2036R, and 2038R |
Cap Screws, M12 x 70 Cap Screws, M12 x 40 |
110 N·m (81 lb·ft) 110 N·m (81 lb·ft) |
|
2520 |
Cap Screws, M12 x 50 Cap Screws, M12 x 30 |
110 N·m (81 lb·ft) 110 N·m (81 lb·ft) |
|
2320 and 2720 |
Cap Screws, M12 x 55 Cap Screws, M12 x 35 |
110 N·m (81 lb·ft) 110 N·m (81 lb·ft) |
|
