Every 50 Hours—120R Loader
Check and Tighten Hardware

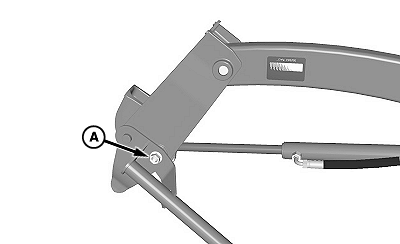

W27146-UN-02DEC15
Parking Stand
W27151-UN-03DEC15
Bucket or Attachment Carrier
A - Flange Nut, M8 (4 used)
Tighten flange nuts (A) (inside of frame), on pivot pins on both sides, to specification.
| Flange Nut | Torque | 32 N·m (23.5 lb·ft) |
Tighten Mounting Frame Hardware

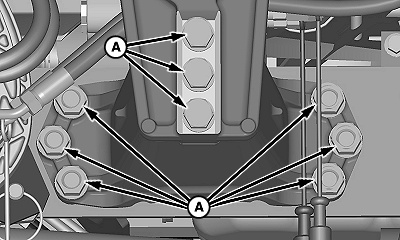

W22472-UN-03MAY12
A - Mounting Frame Hardware
Tighten the mounting frame hardware (A) on both sides to specifications.
| Hardware | Torque | 303 N·m (223 lb·ft) |
|
OUO6064,0001996-19-20180829 |
