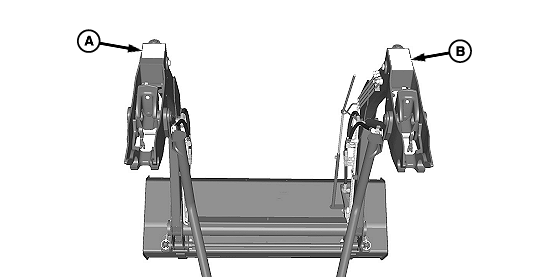

Mast, Rear (220R Loader)

W27016-UN-09SEP15

W05126-19-03APR02

(A)

W07229-19-28MAR05

(B)

(A)—Caution:

• Lock loader latches before operating.
• Before servicing, adjusting equipment or disconnecting oil lines:
  1. Lower loader to ground or support lift arms.
  2. Shut off engine and relieve hydraulic pressure.
• Observe safety recommendations in loader operators manual.

(B)—Danger: Serious injury or death can result from rollovers.

• Do not handle round or large square bales.
• Use ROPS and seatbelt at all times.
• Add required rear ballast.
• Move wheels to widest recommended setting.
• Operate tractor at low speed.
