Remove Front Weights—220R Loader

W22508-UN-18MAY12

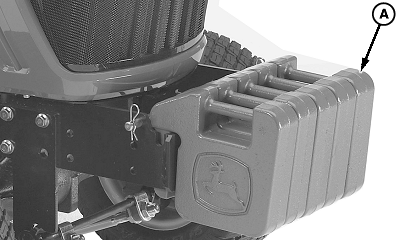

A - Front Tractor Weight (as necessary)

To prevent interference with the loader, remove all the front tractor weights (A).

Front weight bracket extensions are NOT compatible with the loader.

Remove all the front tractor weights (A).
