Attach Ballast Box to Tractor with 3-Point Hitch

1.

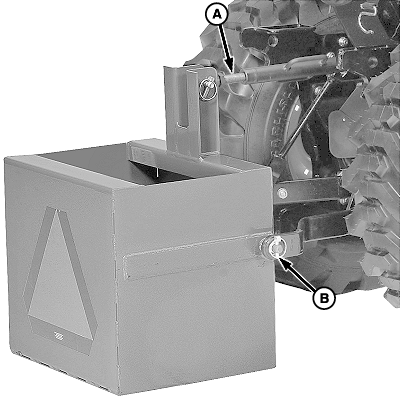

   W23299-UN-19NOV12

   A - Center Link Mounting Hardware

   B - Quick-Lock Pin (2 used)

   Prevent possible injury from tractor instability. Attach the ballast box BEFORE attaching the loader. Prevent possible injury or machine damage. Place the transmission in PARK and check the full range of the hitch for interference or binding with the ballast box. DO NOT stand between the tractor and ballast box.

   Using hitch points for alignment, back up the tractor to the ballast box.

---




2. Engage the park brake or place the transmission in PARK.

3. Shut off engine and remove ignition key.

4. Attach the tractor draft links. Fasten with quick-lock pins (B) (stored on the tractor draft links).

5. Align the center link with the upper hole in the ballast box mounting straps and install the center link mounting hardware (A).

6. Start the engine.

7. Raise the ballast box and check for interference. If necessary, lower the ballast box to the ground and adjust the center link and lift links. See the tractor Operator’s Manual for more information.
