Attach Bucket or Attachment

1.
   W27171-UN-10DEC15


   W27065-UN-11SEP15

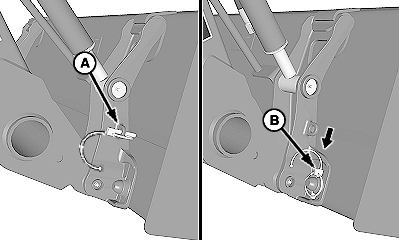

   A - Storage Position (1 each side)

   B - Quick-Lock Pin (1 each side)

   C - Hook (1 each side)

   D - Holder (1 each side)

   E - Holder Strap (1 each side)

   F - Bucket Pin (1 each side)

   The attaching procedure is the same for all attachments. Bucket attachment shown.

   Start the engine.

---




2. Raise the loader boom just off the ground and tilt holders (D) forward by extending bucket cylinders.

3. Drive forward and center holders (D) under and in between hooks (C) on the bucket.

4. Raise the loader boom until the holders engage hooks on sides of the bucket.

5. Retract bucket cylinders until bucket pins (F) engage holder straps (E) on each side of the bucket.

6. Raise the loader boom 460 mm (18 in) above the ground.

7. Set the park brake and place the transmission in PARK. Shut off engine and remove ignition key.

8. Remove quick-lock pins (B) from the storage position (A) on each side of the bucket and install into bucket pins.
