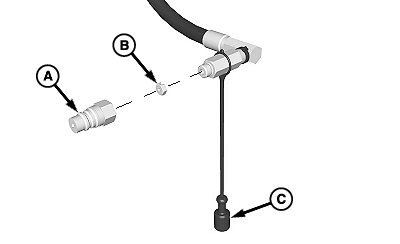

Replace Orifice—220R Loader

W27125
W27125-UN-18NOV15

A - Adapter Fitting

B - Orifice

C - Cap (blue)

Orifice (B) must be in place for a more efficient use of the tractor hydraulics. The lift circuit orifice slows the lowering and improves the control of lift arms.

Orifice (B) is in the head-end of the lift-cylinder hose-fitting cap (C) (color-coded BLUE).

When installing the orifice, the flat face of the orifice must be against the inside of the adapter fitting (A).

OUO6064,0001519-19-20180829
