Every 10 Hours

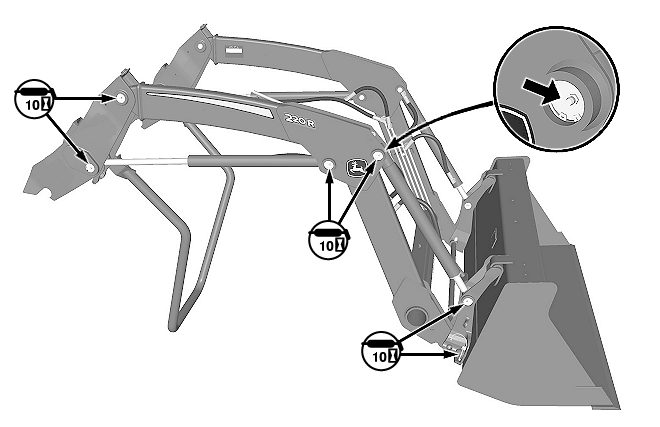

220R Loader

Lubricate Pins

W27173-UN-10DEC15

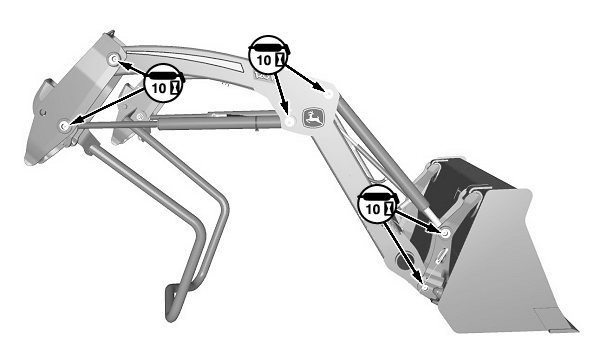

120R Loader

W27185-UN-10DEC15

Lubricate Pins

Lubricate 12 fittings, six on each side of the loader.

220R and 120R Loaders

W27516-UN-23JUN16

W27517-UN-23JUN16

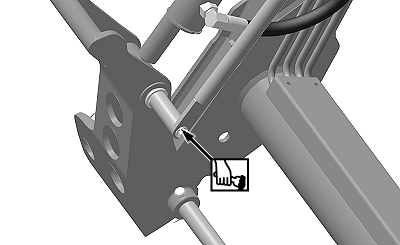

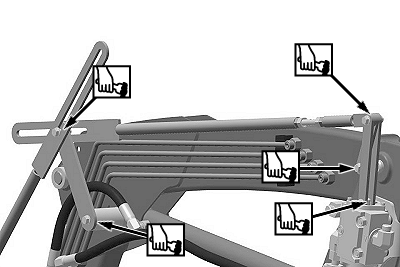

Grease Anti-Spill System Joints—Australia Only

Lubricate six fittings.
