Every 50 Hours

220R Loader

Check and Tighten Hardware

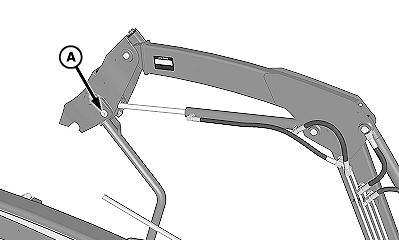

W27071-UN-11SEP15

Parking Stand

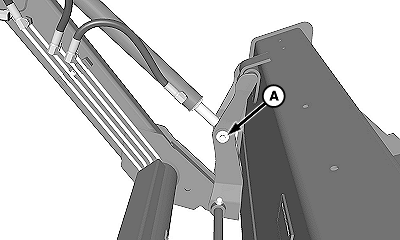

W27152-UN-03DEC15

Bucket or Attachment Carrier

A - Cap Screw, M8 (4 used)

Cap Screw	Torque	32 N·m (23.5 lb·ft)

120R Loader

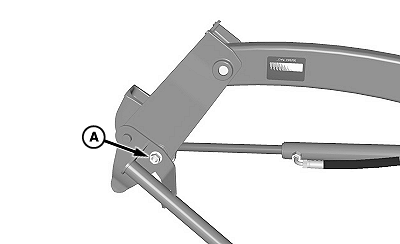

W27146-UN-02DEC15

Parking Stand

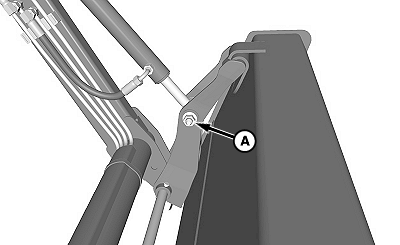

W27151-UN-03DEC15

Bucket or Attachment Carrier

A - Flange Nut, M8 (4 used)

Check and Tighten Hardware

Tighten flange nuts (A) (inside of frame), on pivot pins on both sides, to specification.

Flange Nut	Torque	32 N·m (23.5 lb·ft)

220R and 120R Loaders

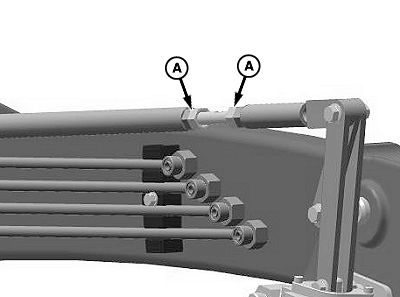

W27520-UN-23JUN16

Check and Tighten Anti-Spill Boom Linkage Nuts—Australia Only

Tighten lock nuts (A) on the boom linkage.

220R Loader

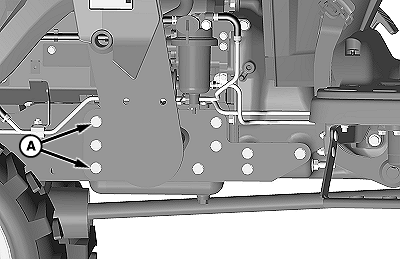

W27073-UN-11SEP15

2032M Tractor (Left-Hand Side) Shown

A - Mounting Frame Hardware

Tighten Mounting Frame Hardware

Tighten the mounting frame hardware (A) on both sides to specifications.

Tractor	Hardware	Torque Specification
2032M 2032R, 2036R, and 2038R	Cap Screws, M12 x 70 Cap Screws, M12 x 40	110 N·m (81 lb·ft) 110 N·m (81 lb·ft)
2520	Cap Screws, M12 x 50 Cap Screws, M12 x 30	110 N·m (81 lb·ft) 110 N·m (81 lb·ft)
2320 and 2720	Cap Screws, M12 x 55 Cap Screws, M12 x 35	110 N·m (81 lb·ft) 110 N·m (81 lb·ft)

120R Loader

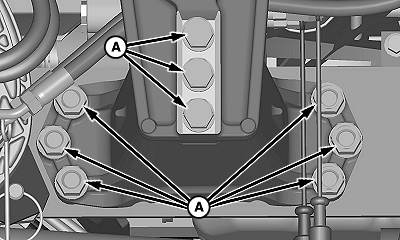

W22472-UN-03MAY12

A - Mounting Frame Hardware

Tighten Mounting Frame Hardware

Tighten the mounting frame hardware (A) on both sides to specifications.

Hardware	Torque	303 N·m (223 lb·ft)
