Adjust Anti-Spill Boom Linkage—Australia Only

1.

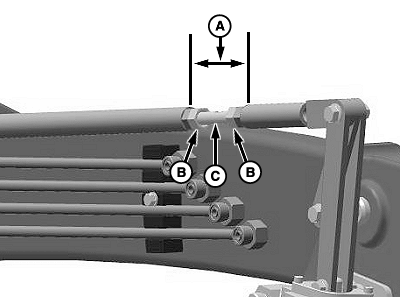

   W27368-UN-19APR16

   A - Distance

   B - Lock Nut, M12 (2 used)

   C - Turnbuckle

   Adjust the boom linkage to the minimum possible distance (A) between lock nuts and verify the performance.

---




2. If necessary, loosen lock nuts (B) and rotate the turnbuckle (C) to lengthen the linkage distance until the desired performance is achieved. Tighten lock nuts.
