Using Booster Battery

causym CAUTION:

    Battery gas is explosive:

  • DO NOT smoke while charging battery.

  • Keep all flames and sparks away.

  • DO NOT charge frozen battery.

  • DO NOT connect booster battery negative (-) cable to starting vehicle negative (-) terminal.

1. Access battery. (See procedure in Service section.)

2. Connect positive (+) booster cable to booster battery positive (+) post (D).

3. Connect the other end of positive (+) booster cable to tractor battery positive (+) post (A).

4. Connect negative (-) booster cable to booster battery negative (-) post (C).

5. Connect the other end of negative (-) booster cable to engine ground (B), away from battery and starter.

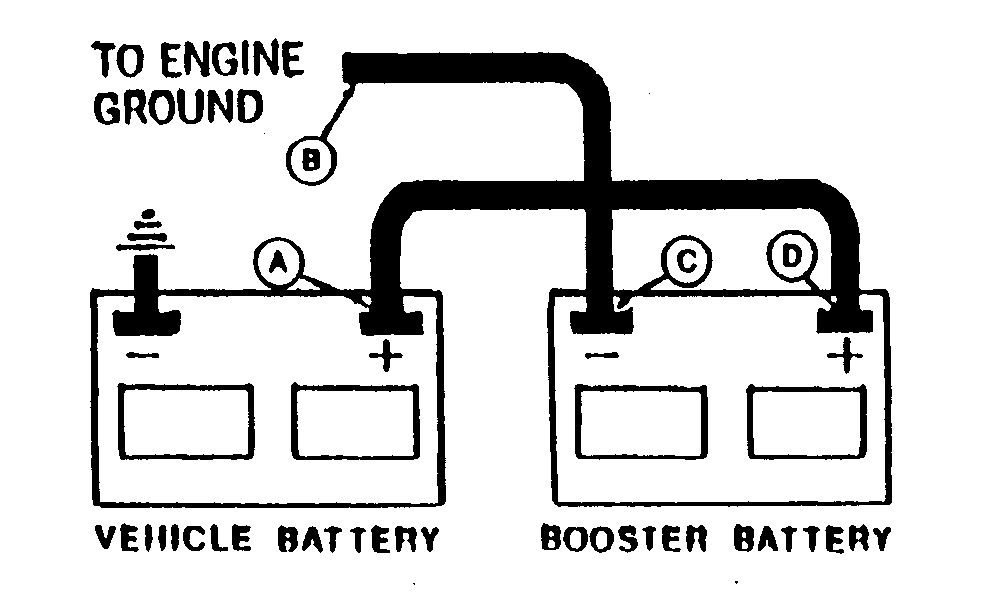

M71044


A-Tractor Battery Positive (+) Post
B-Engine Ground
C-Booster Battery Negative (-) Post
D-Booster Battery Positive (+) Post

AG,OUO1032,2531 -19-21AUG99-1/1
