Clean Transmission-Hydraulic Pickup Screen

Remove two cap screws (A) and remove screen cover (B).

1. Drain transmission-hydraulic oil. (See Change Transmission-Hydraulic Oil and Filter in this section.)

2. Remove two cap screws (A) and remove screen. Examine screen for damage. Replace if necessary. Clean screen in solvent and blow dry with compressed air.

3. Carefully install screen so the front of screen is inserted in hole at front of differential case.

4. Fill system with transmission-hydraulic oil. (See Changing Transmission-Hydraulic Oil and Filter in this section.)

5. Check oil level at dipstick (C) after filling, and again after operating for 5 minutes.

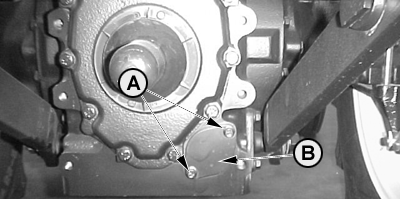

A-Cap Screws (2 used)
B-Screen Cover

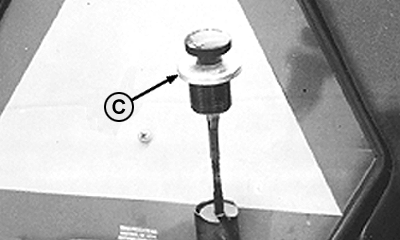

C-Oil Dipstick
