Removing Hood

1. Remove side screens. (See Removing Side Screens in this chapter.)

2. Remove two cap screws (A) securing hood.

3. Release the hood support rod from the hood latch and secure the rod in the stored position.

4. Remove hood from tractor.

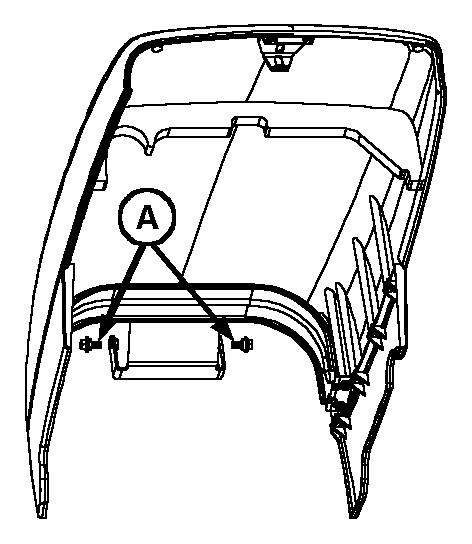

A-Cap Screws (2 used)

LV4454

AG,OUO1032,2577 -19-23AUG99-1/1
