Change Transmission-Hydraulic Oil and Filter

1. Lower rockshaft to remove trapped oil.

2. Remove drain plug (A) from transmission case and drain oil. Dispose of waste oil properly.

3. Replace filter (C) while changing oil. Apply a film of oil to new filter gasket and install new filter. Hand tighten only.

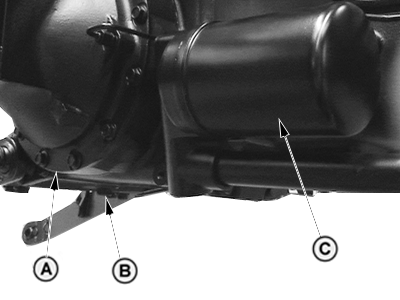

A-Transmission Case Drain Plug
B-Drain Plug
C- filter
D-Oil Dipstick

PY4039

AG,OUO6035,42 -19-17MAY00-1/2

4. Fill system with transmission-hydraulic oil. (See Fuels, Lubricants and Coolant section.)

Specification

Transmission Oil -Capacity 38 L

5. Check oil level at sight glass after filling. Make sure oil level is to full level mark . Check again after operating for five minutes. Add oil if necessary.
