Tighten Bolts-Adjustable Front Axle

Tighten bolts in the following locations to specifications:

Specification

Adjustable Front Axle-Axle-to-Knee Bolts -Torque 480 N·m (350 lb-ft)
Adjustable Front Axle-Disk-to-Flange Bolts -Torque 210 N·m (130 lb-ft)

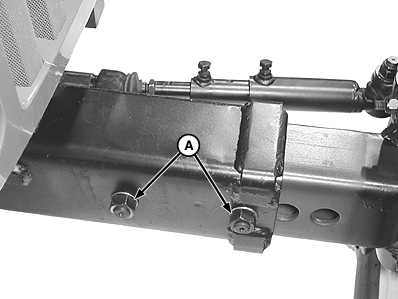

A-Axle-to-Knee

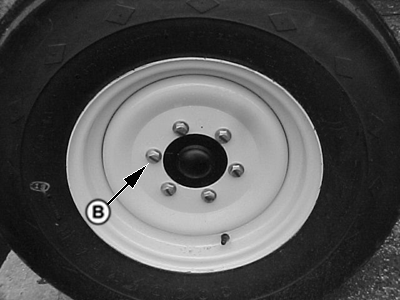

B-Disk-to-Flange

LV9047
PY4526

MX,WTIP,C1A3 -19-10JAN96-1/1
