Tread Settings-Multi-Position Rear Wheels

Wheel tread on rear axle with multi-position wheels can be adjusted by repositioning or exchanging the rims or by reversing the wheel disks.

Wheel tread can also be adjusted by exchanging the complete wheel to the opposite side of the tractor (this maneuver permits the change from disk-dished-in to disk-dished-out operations without disassembling the wheel). When changing rear wheels from one side to the other, the arrow on side wall of tire points in the direction of forward rotation.

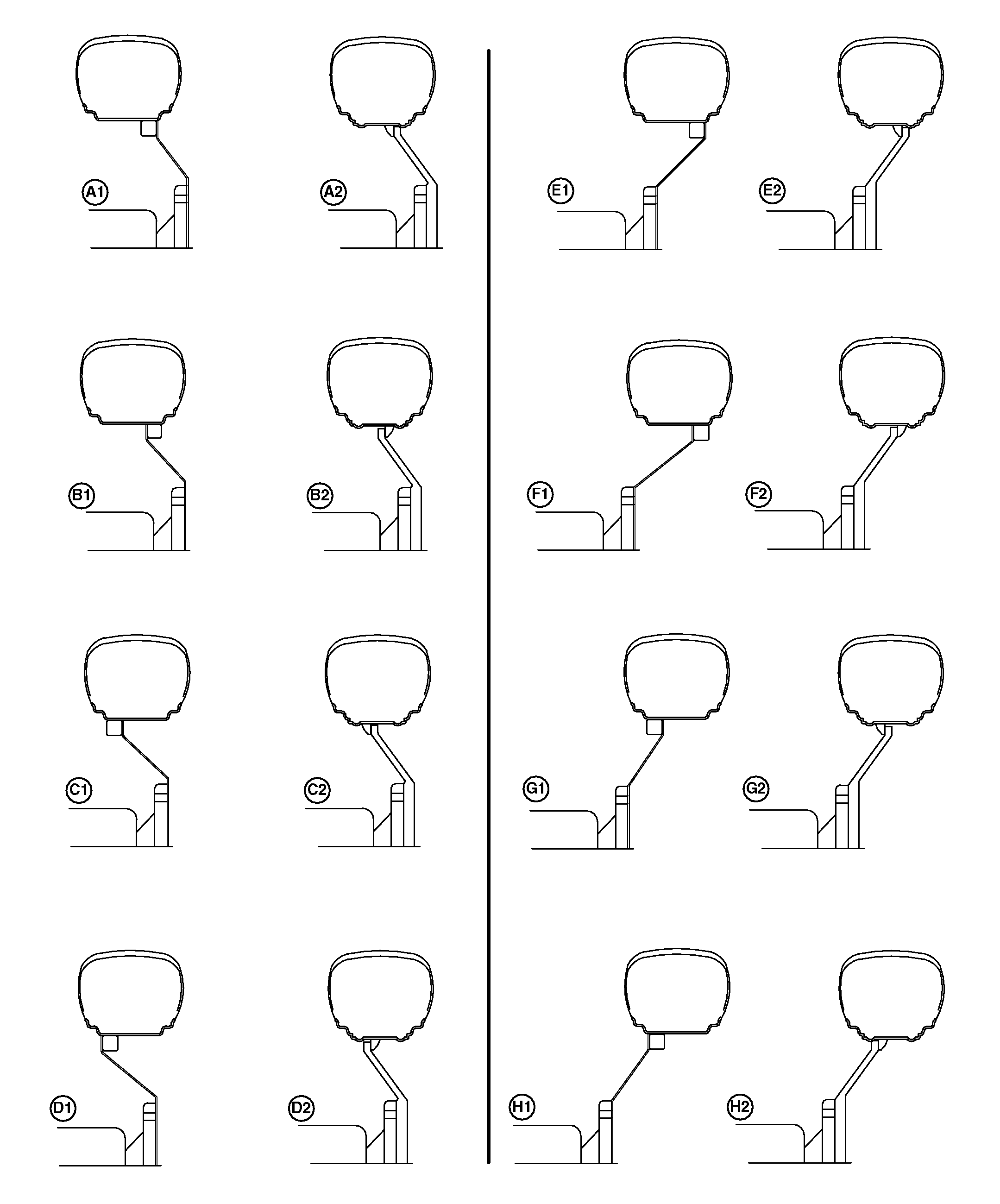

The relationship of the wheel disk and rim in obtaining the different tread settings is shown in the diagrams on the facing page.

NOTE: A1 is a steel disk and A2 is a cast disk (unless otherwise noted).

A study of these diagrams, before attempting to change tread settings, will save unnecessary labor.

OUO1043,0000E76 -19-11AUG06-1/3

IMPORTANT: After setting wheel spacing, tighten rim-to-disk and disk-to-flange bolts. Drive tractor 100 m (109 yd) and tighten again.

Specification

Multi-Position Rear Wheels Rim-to-Disk -Torque 245 N·m (180 lb-ft)
Multi-Position Rear Wheels Disk-to-Flange -Torque 175 N·m (130 lb-ft)

NOTE: Tread settings are measured at bottom of centerline.

STEEL AND CAST DISKS
REAR TREAD WIDTH
Centerline-to-Centerline
STEEL DISK CAST DISK
Diagram Tire Sizes Diagram Tire Sizes
  13.6-28
14.9-24
14.9-28
16.9-24
16.9-28		 16.9-30
18.4-30		   16.9-30
18.4-30
15.5-38
A1 Not available Not available A2 Not available
B1 Not available Not available B2 Not available
C1 Not availablea Not available C2 Not available
D1 1417 mm (55.8 in.) 1366 mm (53.8 in.) D2 Not available
E1 1513 mm (59.6 in.) 1563 mm (61.5 in.) E2 1535 mm (60.4 in.)
F1 1617 mm (63.7 in.) 1665 mm (65.6 in.) F2 1634 mm (64.3 in.)
G1 1716 mm (67.6 in.) 1668 mm (65.7 in.) G2 1729 mm (68 in.)
G1b 1919 mm (75.6 in.) 1871 mm (73.7 in.) G2b 1933 mm (76.1 in.)
H1 1820 mm (71.7 in.) 1770 mm (69.7 in.) H2 1838 mm (72.4 in.)
H1b 2024 mm (79.7 in.) 1973 mm (77.7 in.) H2b 2042 mm (80.4 in.)
a1313 mm (51.7 in.) for 14.9-24, 36.6-28 and 14.9-28 tires only.
bRequires 102 mm (4.0 in.) axle spacers.



OUO1043,0000E76 -19-11AUG06-2/3

LV858

OUO1043,0000E76 -19-11AUG06-3/3
