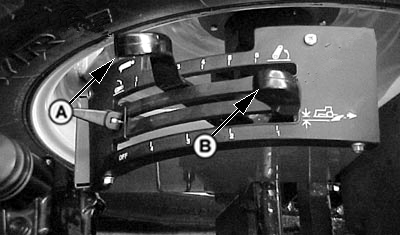

Rockshaft Control LeversThe rockshaft position is controlled by two levers, the rockshaft position control lever (A) and the rockshaft draft control lever (B) The rockshaft position control lever (A) raises the hitch when pulled rearward, and lowers the hitch when moved forward. See Using Rockshaft Position Control in this section for more information. The rockshaft draft control lever (B) controls hitch position relative to draft loads. See Using Draft Control in this section for more information. |
|
PU00210,000047D -19-05SEP06-1/1 |
