Adjusting Rockshaft Rate-of-Drop/ Implement lock

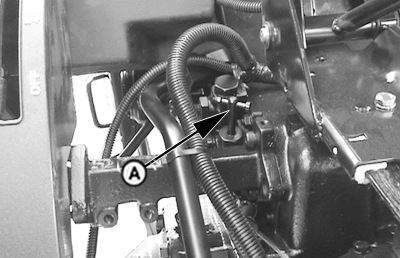

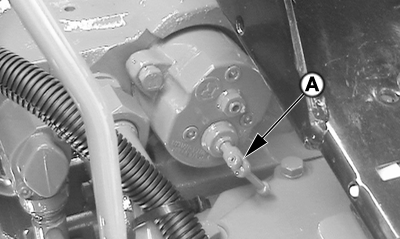

Rockshaft drops faster when a heavy implement is attached. Adjust rate-of-drop knob so that it is slow enough to be safe and prevent implement damage. MITA Rockshaft - Turn rockshaft rate-of-drop knob (A), located under the seat, clockwise to slow rockshaft drop. New JD Rockshaft - Turn rockshaft rate-of-drop knob (A), located under right-hand rear of seat, clockwise to slow rockshaft drop. Turn knob counterclockwise to increase rate-of-drop. Rate-of-drop knob is also called implement lock. When knob is fully screw in, implement will not lower down even if position control lever is fully down. Use implement lock while transporting implement.
|
|
CAUTION:
Excessive rate-of-drop may cause damage or injury. Fully lowering implement should require at least two seconds.
PU00210,0000481 -19-05SEP06-1/1 |
