Attaching Tipping Trailer

Hydraulic power can be extended to tipping trailer through auxiliary port (B). When preselector knob (A) is fully screwed-in, hydraulic oil will move to tipping trailer. Use draft control lever for lowering or raising of trailer.

NOTE: When tipping trailer is not attached to tractor, fully screw-out preselector knob, otherwise rockshaft will not function.

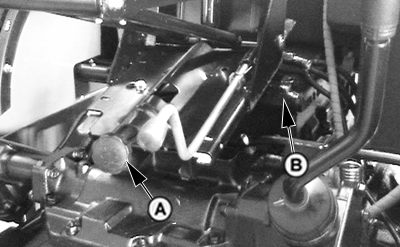

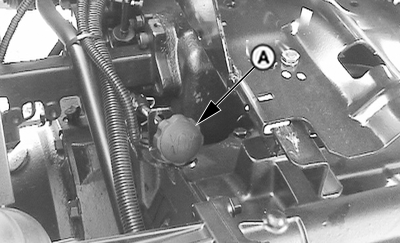

A-Preselector Knob

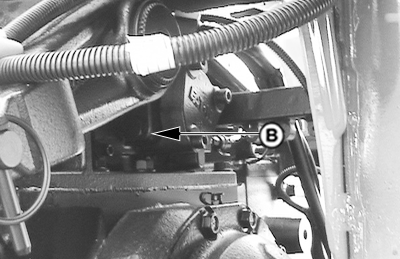

B-Auxilliary Port

PU00210,0000482 -19-05SEP06-1/1
