Adjusting Rockshaft Control Lever Friction - MITA Rockshaft

PY4406
PY4385

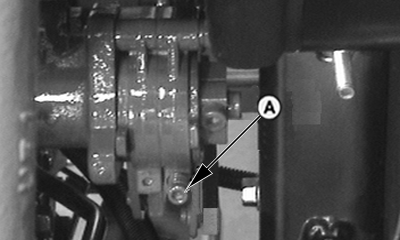

A-Adjustment Set Screw Back Side Of Control Lever

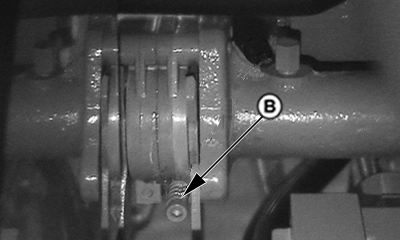

B-Adjustment Set Screw Front Side Of Control Lever



If the rockshaft position control lever or rockshaft draft control lever do not stay in set position, increase lever

friction by tightening the set screws for the appropriate lever until the proper friction is obtained.

PU00210,0000489 -19-05SEP06-1/1
