Warming Hydraulic System Oil

Hydraulic system may be slow to function when tractor is started in cold weather. This is because cold oil will not flow as easily through the hydraulic system filter (A).

Steering may be slow until system warms up.

Hydraulic system will function normally when oil warms up.

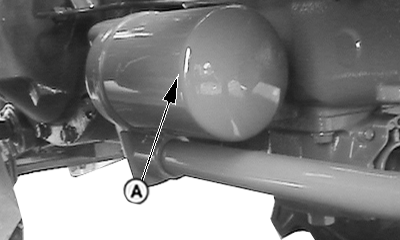

A-Hydraulic Oil Filter

PU00210,000048B -19-05SEP06-1/2

IMPORTANT: To prevent damaging hydraulic pump or relief valve, DO NOT exceed two to three minutes warm-up time with steering wheel held in full left or full right turn position.

1. Depress clutch pedal, start engine and idle at about 1000 RPM.

2. Turn and hold steering wheel in full left or right turn.

PU00210,000048B -19-05SEP06-2/2
