Connecting Single-Acting Cylinder

In order for lever (A) to work properly, a single-acting cylinder should be connected only to SCV outlet in the extend position (top coupler) (B).

IMPORTANT: Volume of oil required to extend cylinder must not lower transmission-hydraulic oil level below lower sight glass. Check oil level with cylinder fully extended. (See Check Transmission-Hydraulic Oil Level in Service-50 Hours chapter.)

Push SCV control lever full forward to use "float" position to lower single-acting cylinder.

"Float" position allows a cylinder to extend and retract freely and uses no engine power.

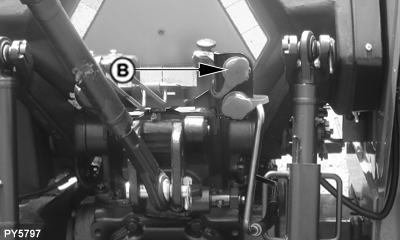

A-SCV Control Lever
B-SCV Outlet

PU00210,000048F -19-05SEP06-1/1
