Using Differential Lock

CAUTION: DO NOT operate tractor at high speed or attempt to turn with differential lock engaged.

CAUTION: Prevent Damage to the drive train and do not attempt to turn the tractor with the differential lock engaged..

When one wheel starts to lose traction, stop the tractor and engage differential lock by depressing pedal (A) down. Tractor wheels must be stopped or turning at the same speed before engaging differential lock. If possible, engage differential lock before entering conditions where tires may slip.

Unequal traction will keep the lock engaged. When traction equalizes, lock will disengage itself by spring action. If lock does not disengage, depress one brake pedal and then the other.

If tires repeatedly slip, then get traction, then slip again, hold pedal in the engaged position.

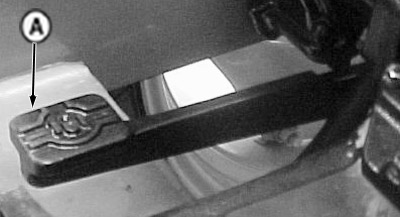

A-Differential Lock Pedal

PY,OMPY0141,016 -19-21AUG99-1/1
