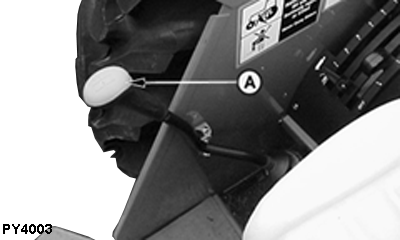

A-Gear Shift Lever

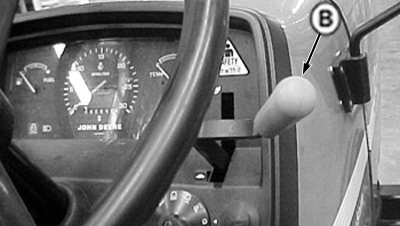

B-Hand Throttle

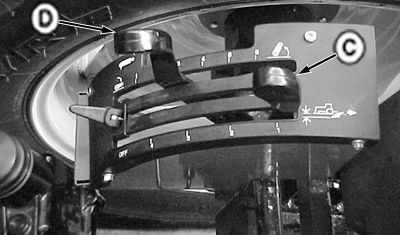

C-Rockshaft Draft Control Lever

D-Rockshaft Position Control Lever

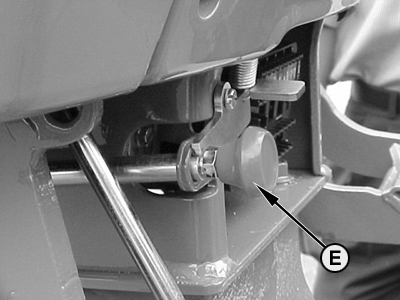

E-Fuel Shut Off Knob

CAUTION: Always place the range shift lever in Park before dismounting. Leaving transmission in gear with engine off MAY NOT prevent tractor from moving.

IMPORTANT: Tractor must be stopped before placing gear shift lever in park. Park pawl will not engage, and the transmission may be damaged if tractor is moving.

1. Stop the tractor and place gear shift lever(A) in Park position.

2. Lower all equipment to ground using rockshaft position control lever (D).

3. Pull hand throttle (B) down to slow idle position. Allow engine to idle for one to two minutes.

IMPORTANT: Cooling of certain engine parts is provided by engine oil. Stopping a hot engine suddenly could cause damage to these parts by overheating or lack of lubrication.

4. Pull the fuel shut off knob (E) to stop the tractor.

CAUTION: Remove the key from key switch to prevent operation by untrained personnel.

5. Turn key switch to off position.

PY,OMPY0141,017 -19-17MAY00-1/1
