Operating Tractor PTO

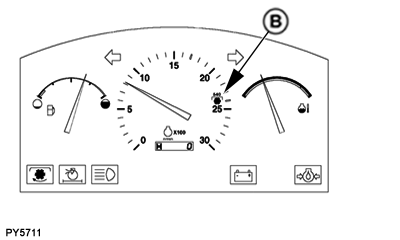

1. Depress clutch pedal, start engine and push hand throttle lever (A) forward until engine speed is sufficient to start PTO implement. Engine speed must be less than 2200 rpm (B).


A-Hand Throttle Lever
B-540 Operation Speed

PY4485
PY5711

PY,OMPY0141,029 -19-30MAY06-1/2

2. In dual clutch tractor, move control lever (A) forward to engage PTO. In case of single clutch tractor, depress clutch and move control lever (A) to engage PTO

3. Increase engine speed to rated PTO speed of 2200 rpm for 540 operation (C).

causym CAUTION: Turn key OFF and pull Fuel Shut-off Knob to stop engine, put tractor in park position and make sure all mechanisms have stopped before cleaning out machine or making any adjustments to PTO driven implement.

4. Pull control lever back to disengage PTO.

PY4487


A-PTO control lever

PY,OMPY0141,029 -19-30MAY06-2/2
