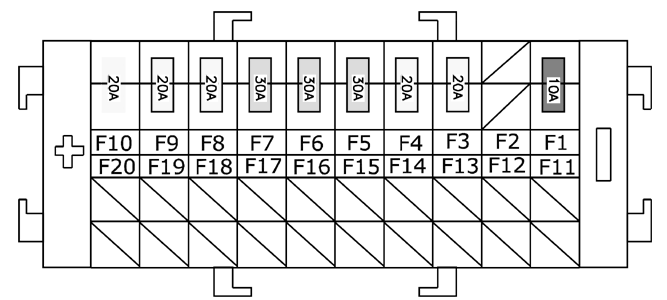

F1-10 amp-Alternator, Instruments and Engine-related Warning Indicators
F2-20 amp-Spare
|
F3-20 amp-Warning Lights and Indicator
F4-20 amp-Flood lights
F5-30 amp-Key Switch Starting Circuit
|
F6-30 amp-Horn, Lights, Turn Signals
F7-30 amp-Auxiliary Circuit
F8-30 amp-Tail Lights
F9-20 amp-High-Beam Headlights
|
F10-20 amp-Low-Beam Headlights
F11 - F20-Spare
|
