Bleeding Fuel System

1. Loosen fuel return line (A).

2. Unscrew hand primer (B) on fuel supply pump until it can be pulled by hand.

3. Operate the hand primer until fuel flow is free from air bubbles.

4. Simultaneously stroke the hand primer down and close the fuel return port. This prevents air from entering the system. Tighten securely.

5. Lock hand primer in position.

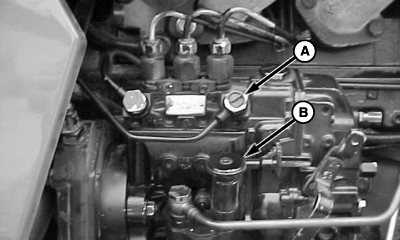

IN226


A-Fuel Return Line
B-Hand Primer
